AVENTICS 0822121011 Pneumatic Piston Rod Cylinder - , 40mm Bore, 500mm Stroke, PRA Series, Double Acting

Name: AVENTICS 0822121011 Pneumatic Piston Rod Cylinder - , 40mm Bore, 500mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: 0822121011
Availability: OutOfStock

Part Number : 0822121011

Availability: Sold out

Detailed Description
Specifications

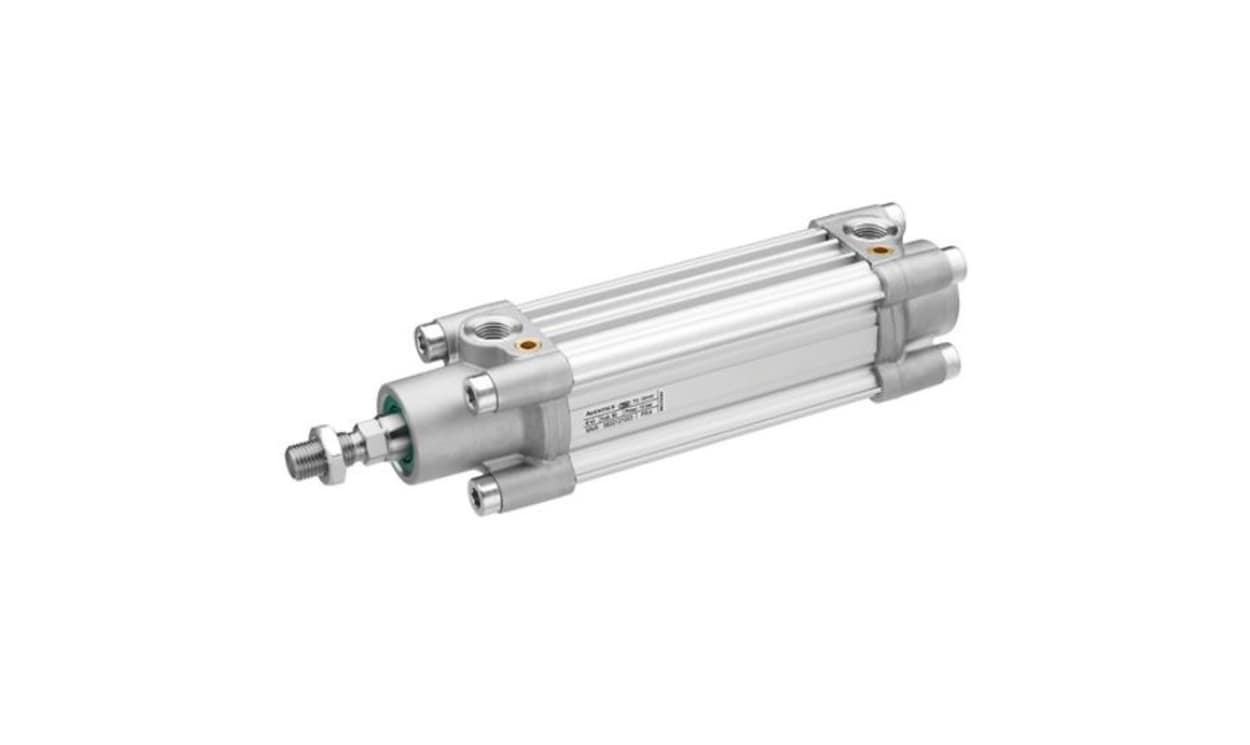

The Aventics Profile Cylinder, designed in accordance with ISO 15552 standards, boasts a compact construction that integrates sensor slots for enhanced performance. Ideal for various industries, the PRA series excels in automation technology and machine construction, providing versatility in demanding applications. Its double-acting functional principle ensures efficient operation, while pneumatic adjustable cushioning offers smooth and precise movements.

Wide operating temperature range accommodates various applications
Constructed from durable materials for longevity and reliability
Easily installs into existing systems for straightforward upgrades
Compatible with ATEX certification for safety in hazardous environments

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	0822121011
Bore	40mm
Action	Double
Stroke	500mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
