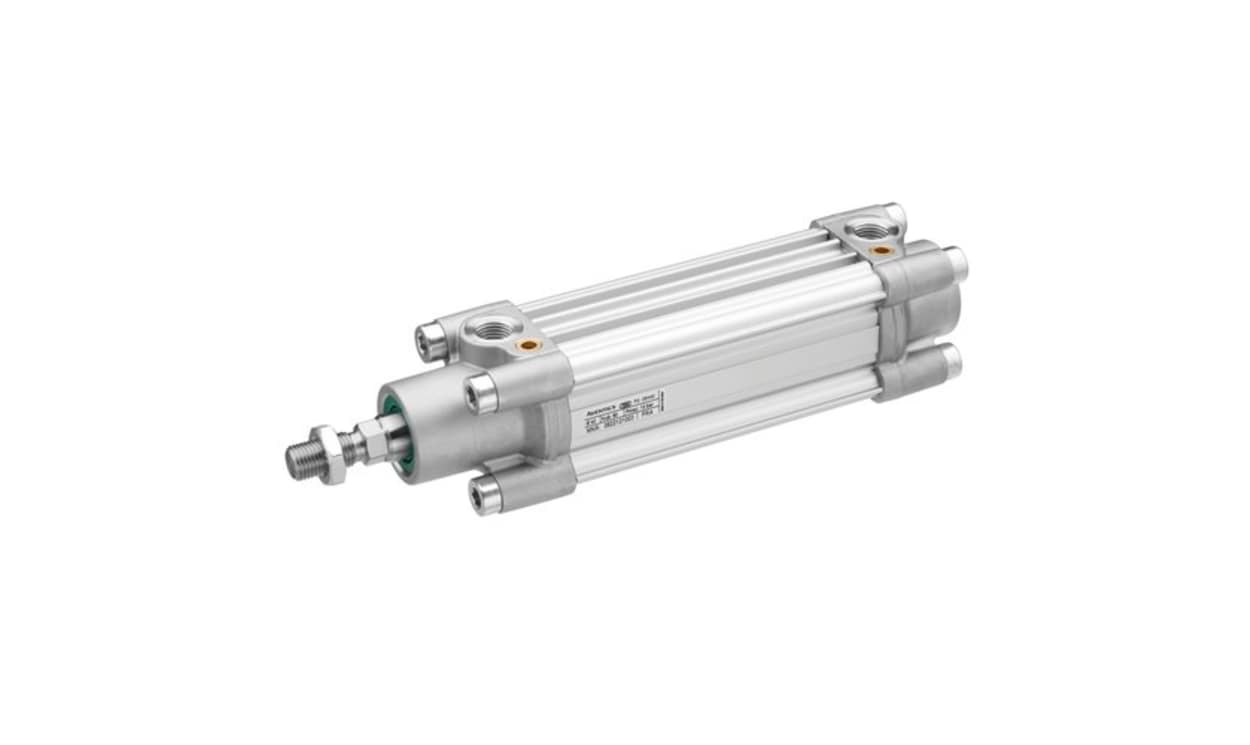

AVENTICS 0822122003 Pneumatic Piston Rod Cylinder - 50mm Bore, 80mm Stroke, PRA Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822122003 Pneumatic Piston Rod Cylinder - 50mm Bore, 80mm Stroke, PRA Series, Double Acting

Name: AVENTICS 0822122003 Pneumatic Piston Rod Cylinder - 50mm Bore, 80mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: 0822122003
Availability: OutOfStock

Part Number : 0822122003

Availability: Sold out

Detailed Description
Specifications

PRA ISO Profile Cylinder

Pneumatic profile cylinders 32 - 125 mm diameters to ISO15552

Double Acting
Magnetic poston
Adjustable pneumatic cushioning
External piston rod thread

SerRexroth PRA ISO Profile Cylinder

Brand	AVENTICS
Manufacturer Series	PRA
Bore	50mm
Stroke	80mm
Action	Double
Port Connection	G 1/4
Cushioning Type	Rubber
Dimensions	186 x 65 x 65mm
Height	65mm
Width	65mm
Length	186mm
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Weight	1.4kg
Maximum Operating Temperature	+80°C

AVENTICS 0822122003 Pneumatic Piston Rod Cylinder - 50mm Bore, 80mm Stroke, PRA Series, Double Acting

AVENTICS 0822122003 Pneumatic Piston Rod Cylinder - 50mm Bore, 80mm Stroke, PRA Series, Double Acting

PRA ISO Profile Cylinder
