AVENTICS 0822123005 Pneumatic Cylinder - , 63mm Bore, 125mm Stroke, PRA Series, Double Acting

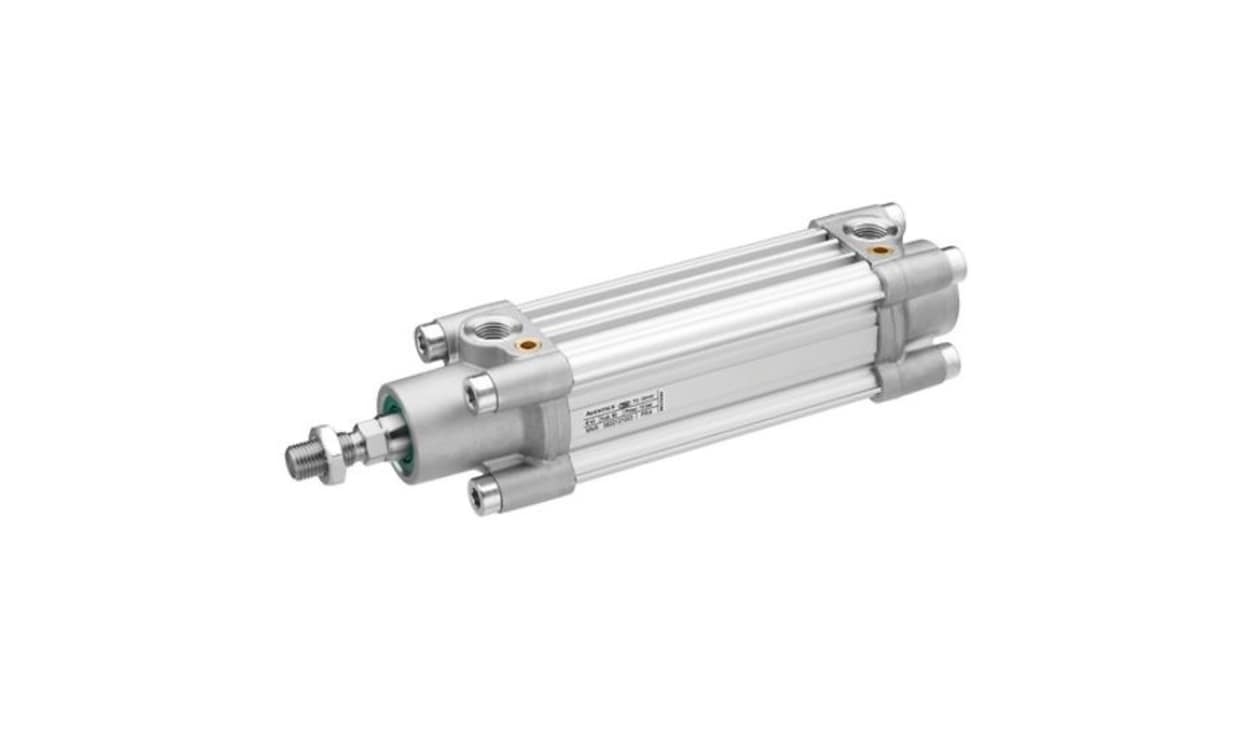

Name: AVENTICS 0822123005 Pneumatic Cylinder - , 63mm Bore, 125mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: 0822123005
Availability: OutOfStock

Part Number : 0822123005

Availability: Sold out

Detailed Description
Specifications

The Aventics PRA cylinders have a compact design profile with integrated sensor slots. These cylinders can be used for all industries. This includes general automation technology, machine and systems construction, as well as specific industry applications.

Available in piston diameters from 32 mm to 125 mm
Modular sealing system allows for adaptability
Advanced pneumatic end position cushioning
Additional elastic damping elements
Wide range of variants and accessories available in the configurator

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	0822123005
Stroke	125mm
Bore	63mm
Action	Double
Port Connection	G 3/8
Pneumatic Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Dimensions	121 x 24mm
Diameter	24mm
Length	121mm
Maximum Operating Pressure	10 bar
ISO Standard	15552
VDMA Standard	ISO 15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
