AVENTICS 0822242003 Pneumatic Guided Cylinder - , 50mm Bore, 80mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822242003 Pneumatic Guided Cylinder - , 50mm Bore, 80mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822242003
Availability: OutOfStock

Part Number : 0822242003

Availability: Sold out

Detailed Description
Specifications

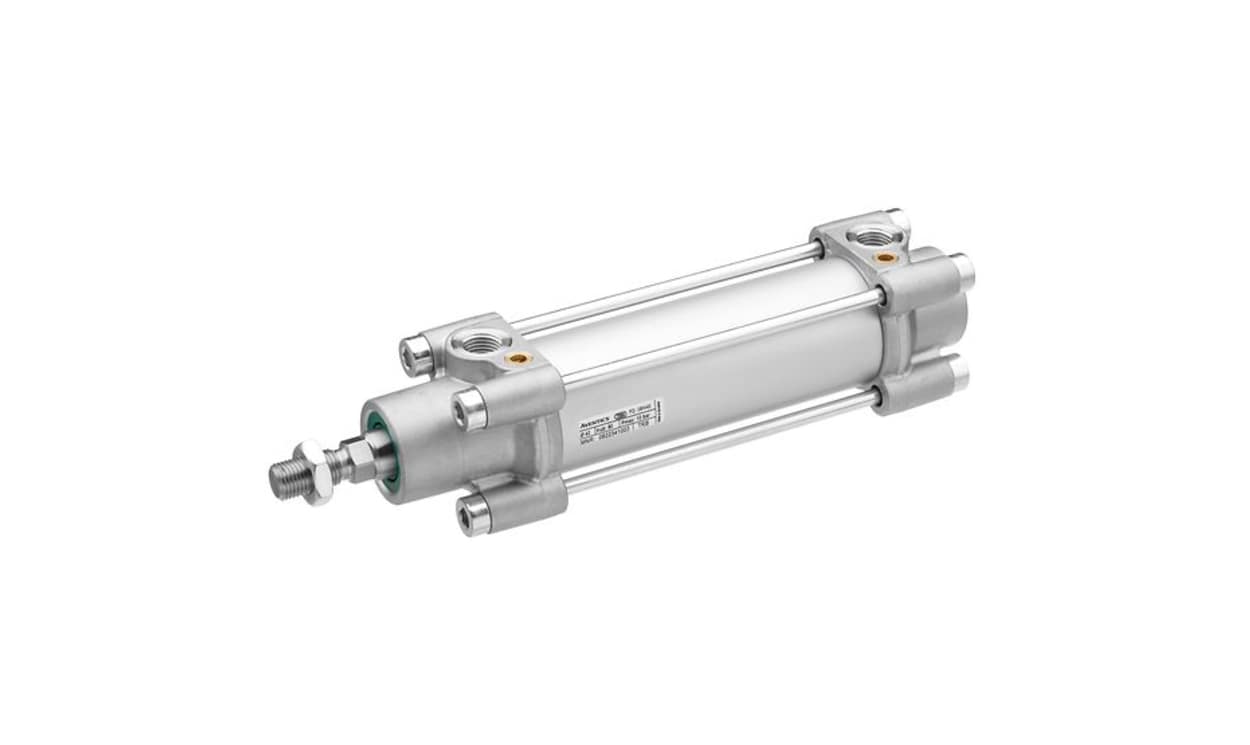

The Aventics TRB Series Tie Rod Cylinder meet the ISO 15552 Standard. It is a durable actuator designed for a wide range of industrial applications. It features an internal thread for compressed air connection and operates within a working pressure range of 1.5 to 10 bar. Piston forces are determined at a pressure of 6.3 bar, ensuring reliable and efficient operation in demanding conditions.

Double acting
Cushioning pneumatically adjustable
Piston rod External thread
Heat resistant

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822242003
Bore	50mm
Action	Double
Stroke	80mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO VDMA
VDMA Standard	ISO VDMA
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
