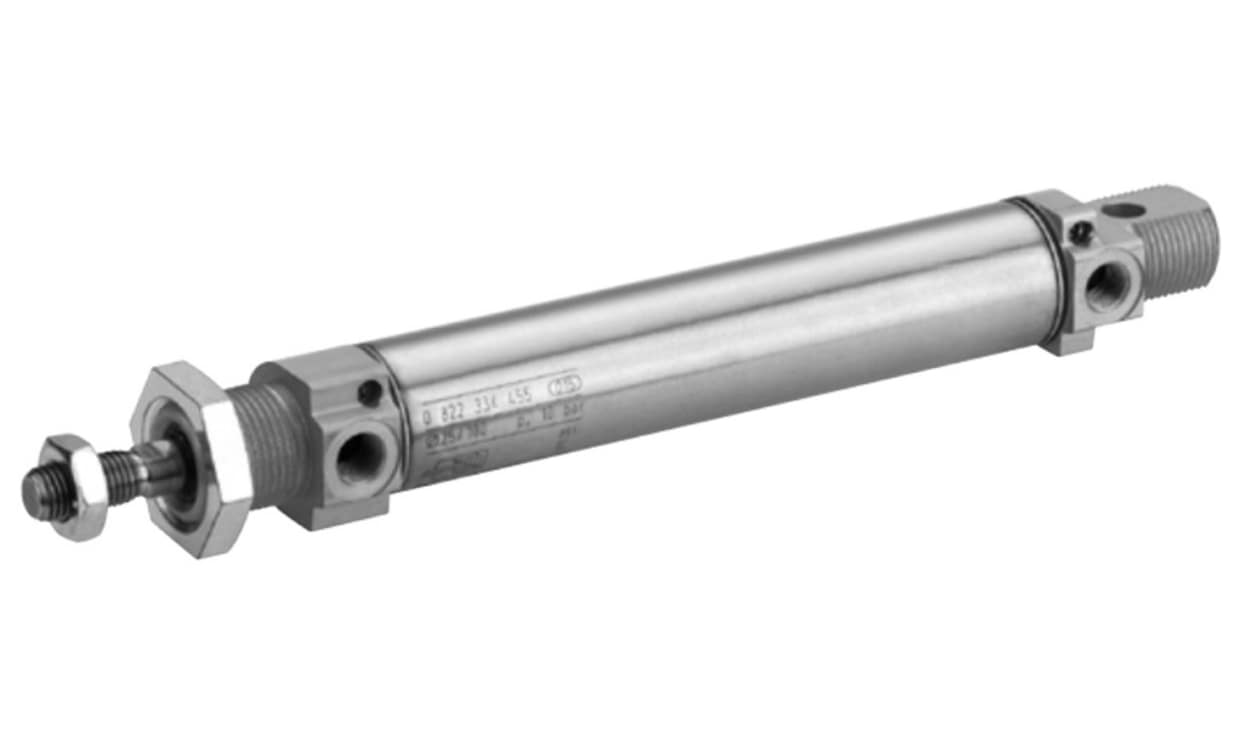

AVENTICS 0822334505 Pneumatic Piston Rod Cylinder - 25mm Bore, 100mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822334505 Pneumatic Piston Rod Cylinder - 25mm Bore, 100mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822334505
Availability: OutOfStock

Part Number : 0822334505

Availability: Sold out

Detailed Description
Specifications

MNI Mini ISO Cylinder Pneumatic Cushioning

Pneumatic Mini Iso 6432 cylinders

Double acting
Magnetic piston
Pneumatic cushioning
Integrated rear eye
External piston rod thread

MNI Mini ISO Cylinder

Brand	AVENTICS
Manufacturer Series	MNI
Action	Double
Stroke	100mm
Bore	25mm
Port Connection	G 1/8
Cushioning Type	Air
Dimensions	219.5 x 30 x 28mm
Length	219.5mm
Width	30mm
Height	28mm
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Weight	395g
