AVENTICS 0822340002 Pneumatic Guided Cylinder - , 32mm Bore, 50mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822340002 Pneumatic Guided Cylinder - , 32mm Bore, 50mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822340002
Availability: OutOfStock

Part Number : 0822340002

Availability: Sold out

Detailed Description
Specifications

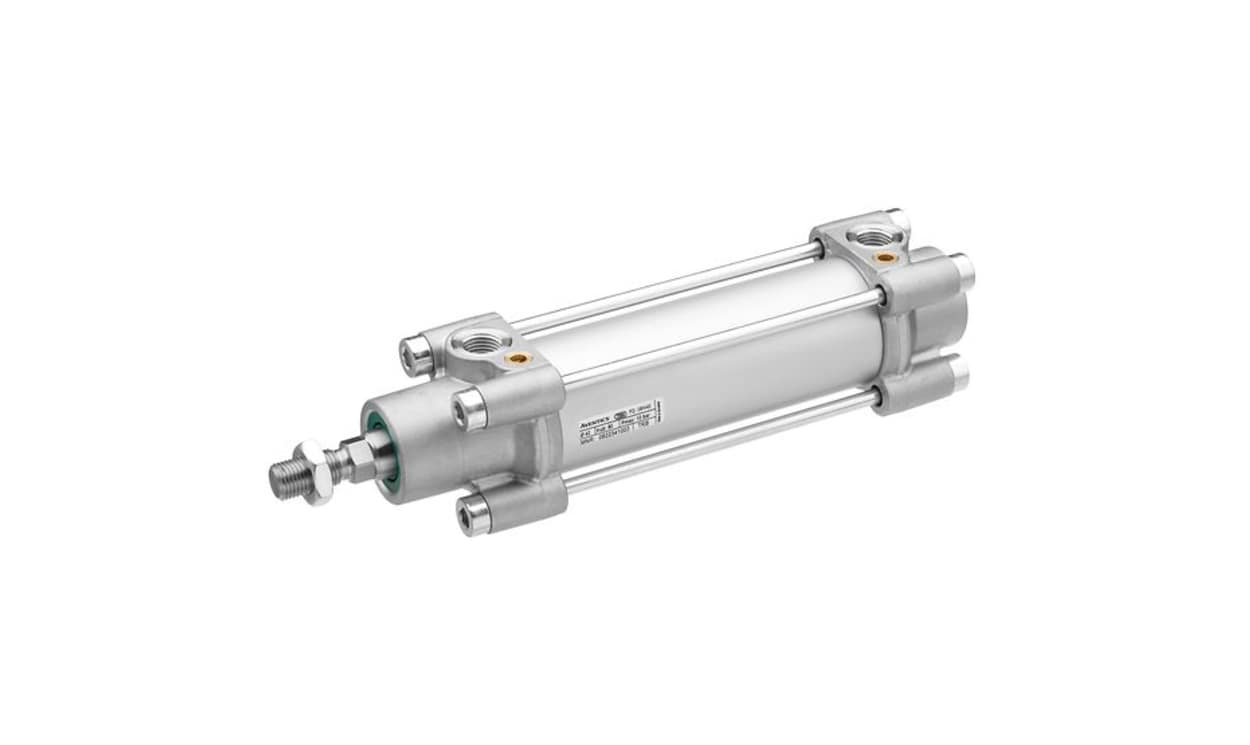

The Aventics tie rod cylinder ISO 15552, Series TRB, exemplifies precision engineering tailored for demanding industrial environments. Designed for reliability and longevity, this cylinder caters to various applications, including heavy-duty machinery and automotive sectors. With its double-acting functional principle, it ensures swift operation and superior performance in challenging conditions. The inclusion of pneumatic adjustable cushioning safeguards against abrupt impacts, enhancing durability across diverse operation modes. Furthermore, its magnetic piston adds a layer of utility, making it suitable for applications requiring precise position feedback. Crafted from robust materials, this cylinder meets industry standards while delivering seamless operation, even in extreme temperatures. It’s a quintessential solution for those seeking a dependable, high-performance cylinder that adapts effortlessly to the rigours of industrial use.

Engineered for heavy-duty applications across various industries
Pneumatic adjustable cushioning provides optimal protection against shocks
Double-acting design facilitates efficient operation under pressure
Magnetic piston enhances position detection capabilities
Constructed from durable materials to withstand harsh environments
Temperature range flexibility allows for diverse operational settings
ATEX certification options available for hazardous environments
Lightweight design ensures ease of installation and handling
Compliant with ISO 15552 standards for guaranteed quality

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822340002
Bore	32mm
Action	Double
Stroke	50mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
