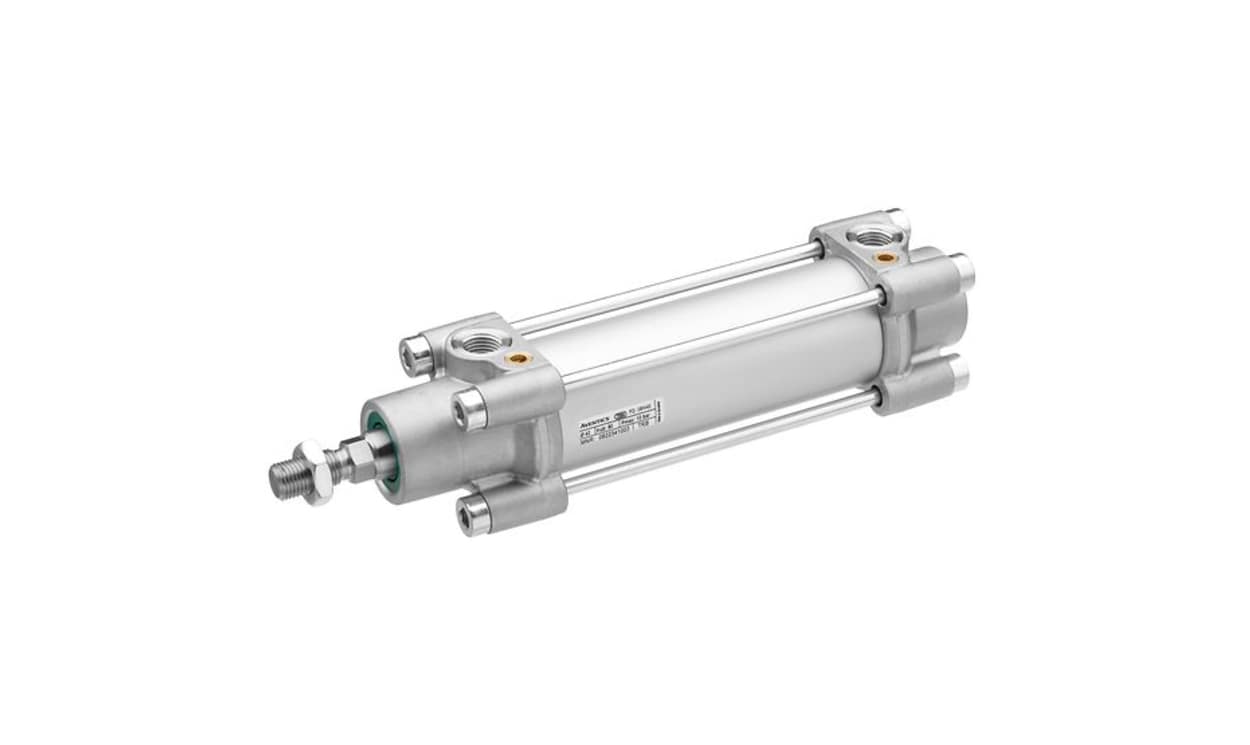

AVENTICS 0822342005 Pneumatic Piston Rod Cylinder - , 50mm Bore, 125mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822342005 Pneumatic Piston Rod Cylinder - , 50mm Bore, 125mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822342005
Availability: OutOfStock

Part Number : 0822342005

Availability: Sold out

Detailed Description
Specifications

The Aventics tie rod cylinder, designed in accordance with ISO 15552 standards, is engineered to excel in heavy-duty industrial applications. Delivering robust performance, it is ideal for sectors such as automotive, mining, and heavy machinery, where reliability and durability are paramount. Featuring double-acting functionality, this cylinder offers pneumatic adjustable cushioning, ensuring smooth operation. The stainless steel piston rod is built to withstand demanding environments, while the die-cast aluminium components contribute to its overall lightweight design without compromising strength. With a stroke capacity of up to 2100 mm and a wide range of operating pressures, this tie rod cylinder provides versatile solutions for various applications, catering to both standard and ATEX-certified requirements.

Engineered for robust performance in heavy-duty applications
Doubles as an ATEX-certified option for explosive environments
Pneumatic adjustable cushioning for enhanced operational smoothness
Stainless steel piston rod offers increased durability and corrosion resistance
Wide stroke capacity ensures adaptability across different machinery
Optimised for efficient use of compressed air in various industrial contexts
Lightweight design assists in easier installation and maintenance

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822342005
Action	Double
Stroke	125mm
Bore	50mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
