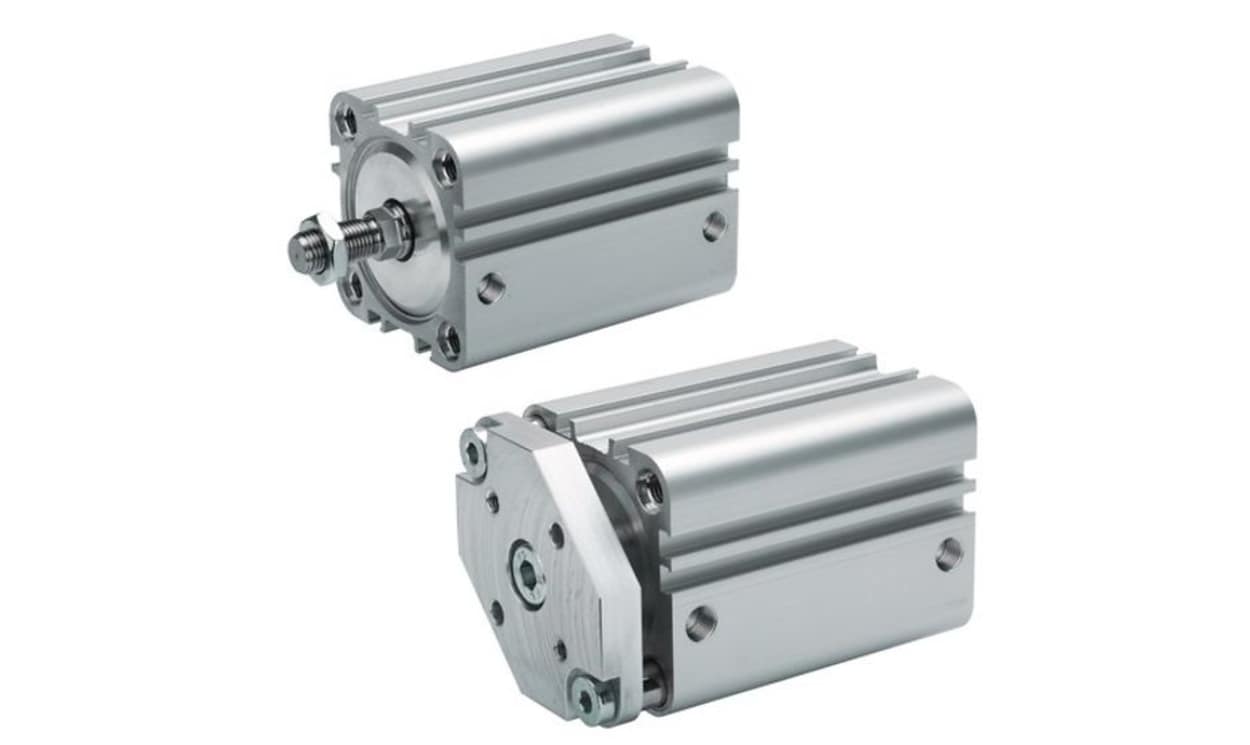

AVENTICS 0822396008 | KPZ Compact Pneumatic Cylinder | 63 mm Bore, 60 mm Stroke, Female Rod Thread
Part Number : 0822396008
The KPZ compact cylinder 0822396008 by AVENTICS combines a 63 mm piston bore with 60 mm of travel and is double acting, with a female thread at the rod end. Supply lines connect to G 1/8 ports, with operation rated to a maximum of 10 bar on this 63 x 60 mm unit.
- 63 mm bore paired with 60 mm stroke
- Female piston rod thread on the 60 mm stroke model
- 63 x 60 mm cylinder plumbed via G 1/8 ports
- 63 x 60 mm unit: elastic cushioning, double action
- Operating window of -20 to +80 °C at up to 10 bar (63 mm bore)
For pricing, please contact our experts.
