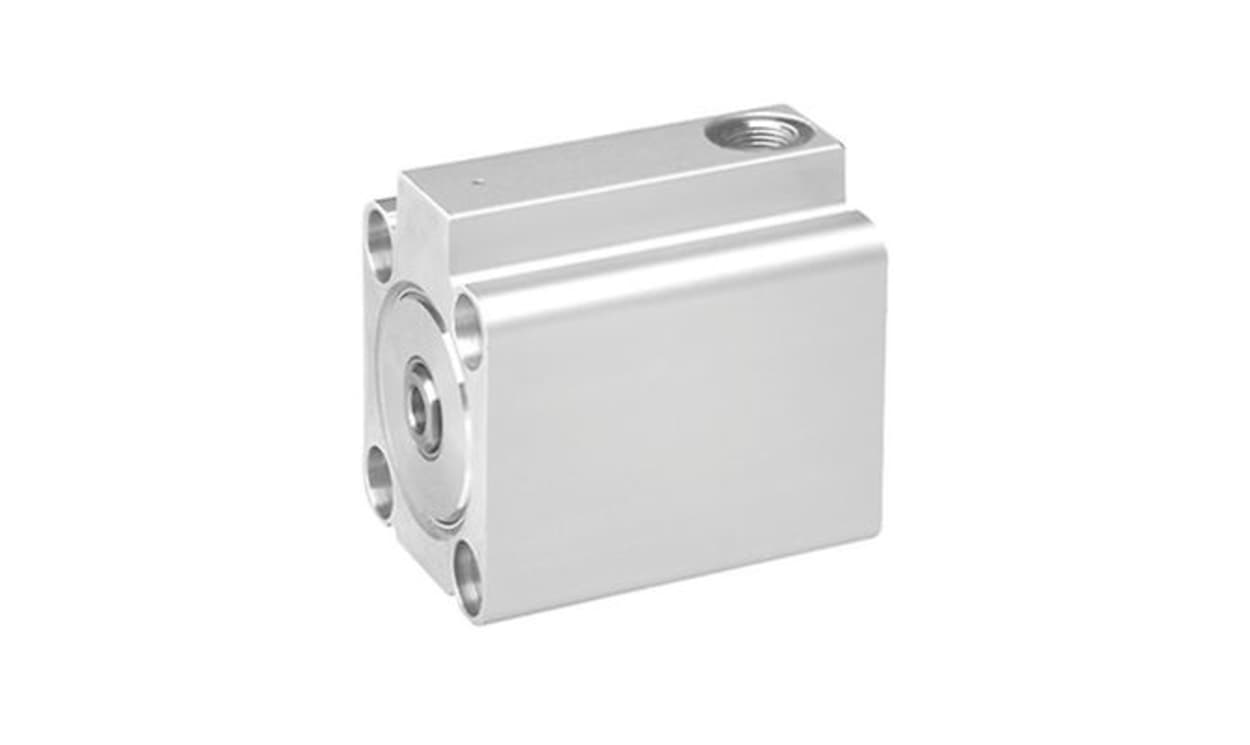

AVENTICS 0822406461 Pneumatic Piston Rod Cylinder - , 50mm Bore, 10mm Stroke, KHZ Series, Single Acting

Name: AVENTICS 0822406461 Pneumatic Piston Rod Cylinder - , 50mm Bore, 10mm Stroke, KHZ Series, Single Acting
Brand: Aventics
SKU: 0822406461
Availability: OutOfStock

Part Number : 0822406461

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder, Series KHZ, is meticulously designed for operations where space is at a premium, enabling effective integration into compact machinery. This innovative product features a robust single-acting design that retracts effortlessly without requiring pressure, ensuring smooth functionality even in challenging environments. With a piston diameter of 50 mm and a stroke length of 10 mm, it provides exceptional performance while maintaining energy efficiency. The cylinder is constructed to meet stringent industry standards, making it an ideal choice for various applications. Its elastic cushioning and magnetic piston further enhance operational reliability, ensuring that it meets strenuous operational demands while promoting continuous performance in industrial settings.

Compact design for fitting into tight installation spaces
Single-acting piston enhances efficiency by retracting without pressure
Elastic cushioning for reduced mechanical stress and improved longevity
Magnetic piston facilitating easy detection and control
Designed to operate effectively in humid and temperature-variable conditions
Stainless steel piston rod provides enhanced durability
Aluminium construction ensures robust performance without excessive weight
Compliant with environmental and industry standards for operational safety

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406461
Bore	50mm
Action	Single
Stroke	10mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Weight	490g
Minimum Operating Temperature	-25°C
