AVENTICS A651A0000000401 G 1/4 FRL, Manual, Semi Automatic Drain, 25μm Filtration Size - With Pressure Gauge

Name: AVENTICS A651A0000000401 G 1/4 FRL, Manual, Semi Automatic Drain, 25μm Filtration Size - With Pressure Gauge
Brand: Aventics
SKU: A651A0000000401
Availability: InStock

Part Number : A651A0000000401

Availability: low stock

Detailed Description
Specifications

651/652 Series Filter Regulator - Lubricator

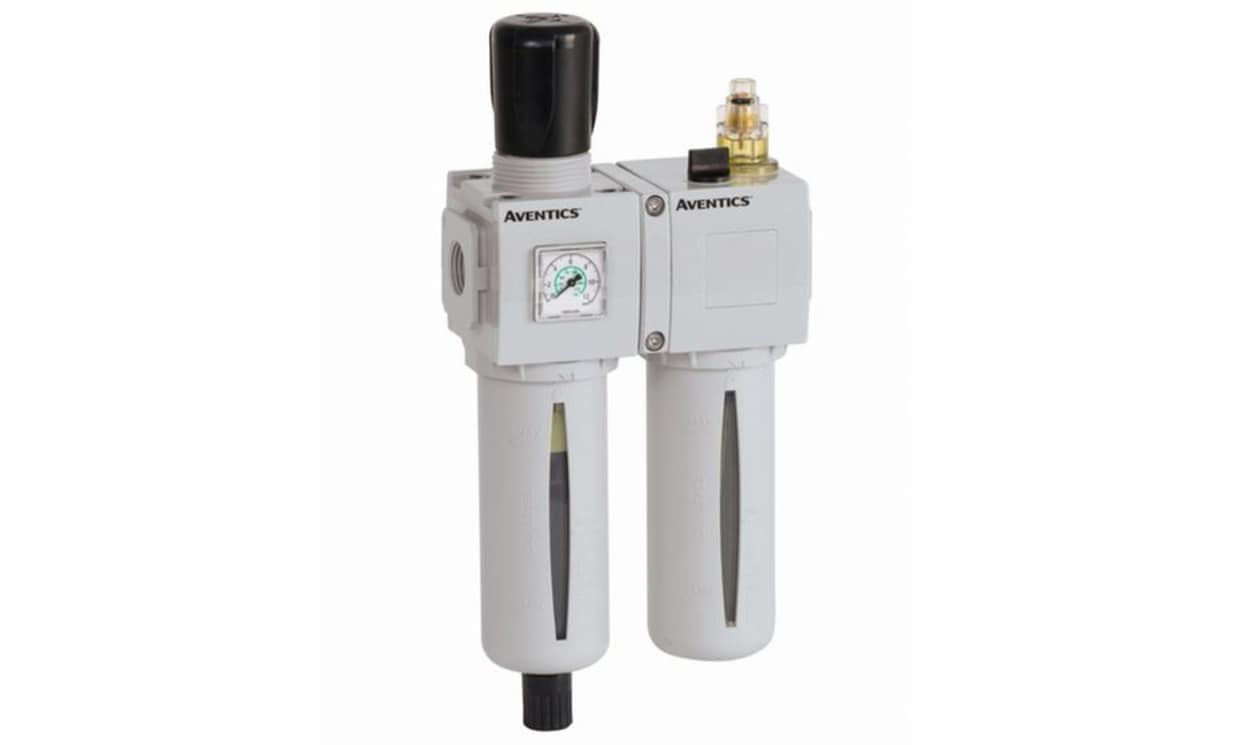

A filter regulator with semi-automatic drain from ASCO’s 651/652 series with a lubricator. The units have a micron rating of 25 μm and are fitted with a polycarbonate bowl with bowl guard. These units come ready mounted and ready for installation. The 651/652 series is a modular air preparation system that is easy to install and can be easily configured to suit various compressed air applications.

Features and Benefits

• Assembly of filter/regulator and lubricator

• Filter/regulator with low profile-integrated gauge

• Polycarbonate bowls with bowl guard

• Delivered mounted and tested

FRL Assemblies

Brand	AVENTICS
Port Connection	G 1/4
Integrated Pressure Gauge	With Pressure Gauge
Drain Type	Manual, Semi Automatic
Manufacturer Series	651
Filtration Size	25µm
Pressure Gauge Port Size	G 1/4
Minimum Operating Pressure	0.2bar
Port Connection Thread Size	1/4 in
Port Connection Thread Standard	G
Maximum Operating Pressure	10 bar
Bowl Material	Polycarbonate
Minimum Pressure Setting	0.2bar
Pressure Gauge Port Thread Size	1/4 in
Pressure Setting Range	0.2 → 10bar
Maximum Pressure Setting	10bar
Pressure Gauge Port Thread Standard	G
