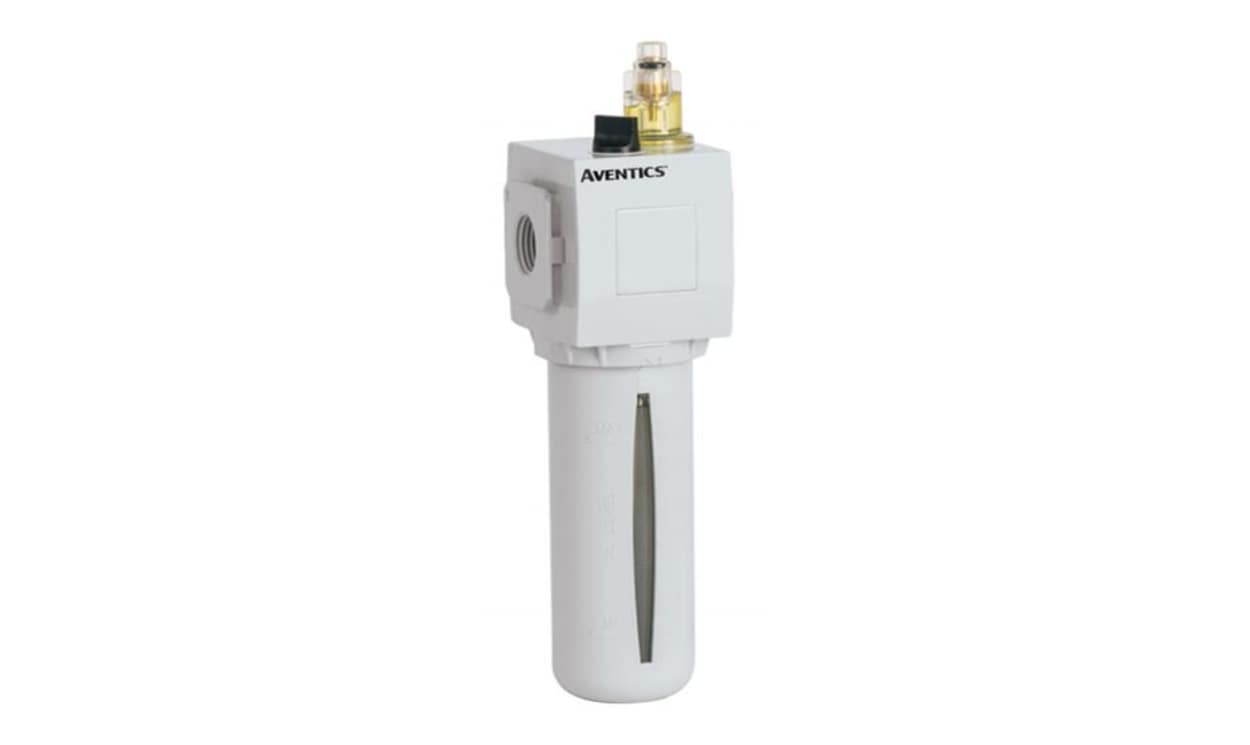

AVENTICS G651AL0P20A0000 | Pneumatic Lubricator | G 1/4, 1940L/min, 651
The AVENTICS G651AL0P20A0000 is a 651-series pneumatic lubricator with G 1/4 ports and a typical flow of 1940 l/min, rated up to 10 bar. Its bowl is polycarbonate.
- Port connection: G 1/4
- Typical flow: 1940 l/min
- Maximum operating pressure: 10 bar
- Operating temperature: +5 to +50 °C
- Bowl material: polycarbonate
- Can be filled under pressure
- Detailed Description
- Specifications
- Downloads
651/652 Series Lubricator
Features and Benefits
| Brand | AVENTICS |
| Port Connection | G 1/4 |
| Port Connection Thread Size | 1/4 in |
| Manufacturer Series | 651 |
| Fill Under Pressure | Yes |
| Typical Flow Rate | 1940L/min |
| Port Connection Thread Standard | G |
| Maximum Operating Pressure | 10 bar |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | +5°C |
| Proof Pressure | 6.3bar |
| Bowl Material | Polycarbonate |
