AVENTICS G651AL0P20A0000 G 1/4 Pneumatic Air Lubricator 10 bar, 651 Series

Name: AVENTICS G651AL0P20A0000 G 1/4 Pneumatic Air Lubricator 10 bar, 651 Series
Brand: Aventics
SKU: G651AL0P20A0000
Availability: OutOfStock

Part Number : G651AL0P20A0000

Availability: Sold out

Detailed Description
Specifications

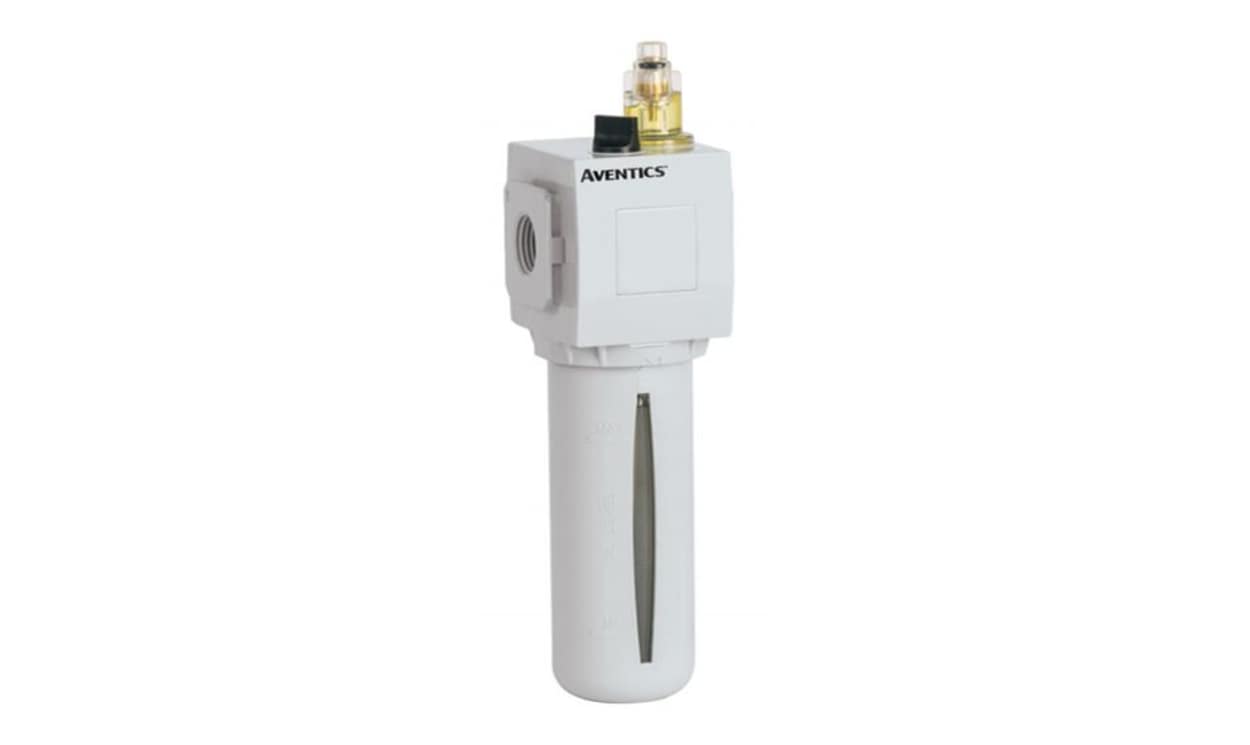

651/652 Series Lubricator

A reliable lubrication module from ASCO’s 651 or 652 series of air preparation equipment range. Fitted with threaded ports this pneumatic lubricator can be fitted with other modules from the 651 or 652 series or individually. This pneumatic lubricator uses Venture technology to deliver lubricant into the air line. The 651/652 series is a modular air preparation system that is easy to install and can be easily configured to suit various compressed air applications.

Features and Benefits

• Provides consistent reliable lubrication to the system

• 1/8, (651) or , 3/8, (652) ports

• Uses Venture type technology to distributes the lubrication into the compressed air line

• Optional electronic liquid level indicator provides condition monitoring

• Allows fill while under pressure from fill port or bowl by removing the fill plug

Filters and Lubricators

Brand	AVENTICS
Port Connection	G 1/4
Port Connection Thread Size	1/4 in
Manufacturer Series	651
Fill Under Pressure	Yes
Typical Flow Rate	1940L/min
Port Connection Thread Standard	G
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	+5°C
Proof Pressure	6.3bar
Bowl Material	Polycarbonate
