AVENTICS R402000986 Double Acting Rodless Actuator 200mm Stroke, 16mm Bore

Name: AVENTICS R402000986 Double Acting Rodless Actuator 200mm Stroke, 16mm Bore
Brand: Aventics
SKU: R402000986
Availability: OutOfStock

Part Number : R402000986

Availability: Sold out

Detailed Description
Specifications

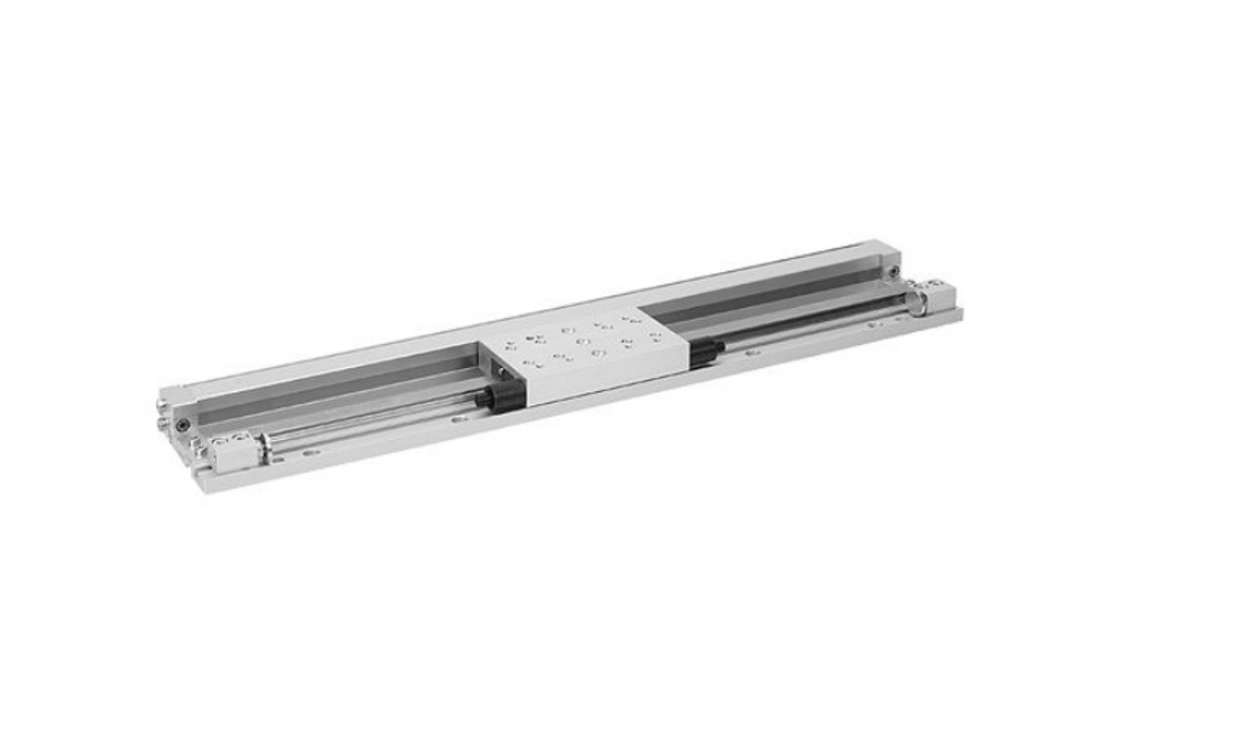

The Aventics guided slide unit from aventics is the quintessential solution for a wide range of handling systems. Engineered with precision, it allows for variable stroke length and positioning along its entire length, showcasing exceptional adaptability during installation. Its compact design ensures easy integration, while the option for side ventilation furthers its functional versatility. With a robust double-acting piston mechanism, this unit supports dynamic applications with greater efficiency. Built to be lightweight yet sturdy, it is made from high-quality materials, ensuring longevity and sustained performance under various operational conditions.

Offers adjustable stroke length for tailored applications
Compact design enhances installation flexibility in tight spaces
Double-acting functionality ensures optimal performance in dynamic environments
Constructed with anodized aluminium for improved corrosion resistance
Features a mini ball rail guide that enables smooth operation
Capable of withstanding varying ambient temperatures, ensuring reliability
Designed to maintain low oil content in compressed air for consistent performance
Includes adjustable end stops for precise control during operation

Brand	AVENTICS
Stroke	200mm
Bore	16mm
Manufacturer Series	GSU
Action	Double
Maximum Operating Pressure	8 bar
Cushioning Type	Hydraulic
Port Connection	M5
Stroke Interval Weight	0.031 @ 10 mm kg/mm
Test Weight	1.78 kg
