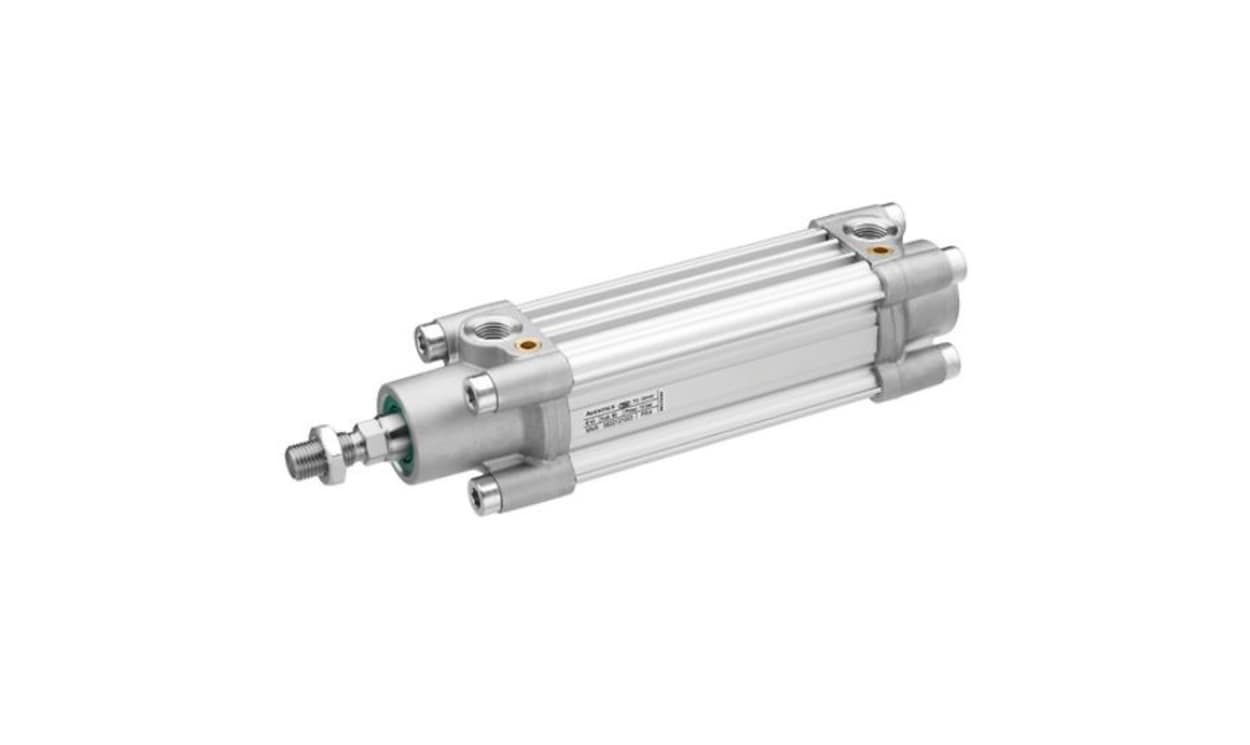

AVENTICS R412014308 Pneumatic Piston Rod Cylinder - , 80mm Bore, 125mm Stroke, PRA Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R412014308 Pneumatic Piston Rod Cylinder - , 80mm Bore, 125mm Stroke, PRA Series, Double Acting

Name: AVENTICS R412014308 Pneumatic Piston Rod Cylinder - , 80mm Bore, 125mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R412014308
Availability: OutOfStock

Part Number : R412014308

Availability: Sold out

Detailed Description
Specifications

The Aventics Series PRA Profile cylinder, designed according to ISO 15552 standards, combines compact design with exceptional functionality, making it a versatile solution for various industrial applications. Its integrated sensor slots enhance adaptability, allowing for integration into a wide range of systems and constructions. This double-acting cylinder is built for durability, supporting operational excellence in demanding environments. Ideal for automation technology, it excels in machine and systems construction, and specific industry applications. Engineered with heat-resistant materials, the cylinder ensures reliable performance, minimising the risk of failure. With a variety of stroke lengths and a robust construction, this product is capable of meeting diverse operational requirements while maintaining high operational standards and efficiency.

Compact design optimises installation space
Reinforced durability ensures long-lasting performance
Integrated sensor slots enhance functionality
Double-acting design allows efficient movement
Wide range of stroke options to suit varying needs
Heat-resistant materials withstand harsh conditions
Low maintenance requirement for reduced downtime
Manufactured to comply with ISO 15552 industry standards
Lightweight construction promotes easy handling
Customisable configurations accommodate specific applications

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R412014308
Action	Double
Stroke	125mm
Bore	80mm
Pneumatic Connection	G 3/8
Port Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+120°C
