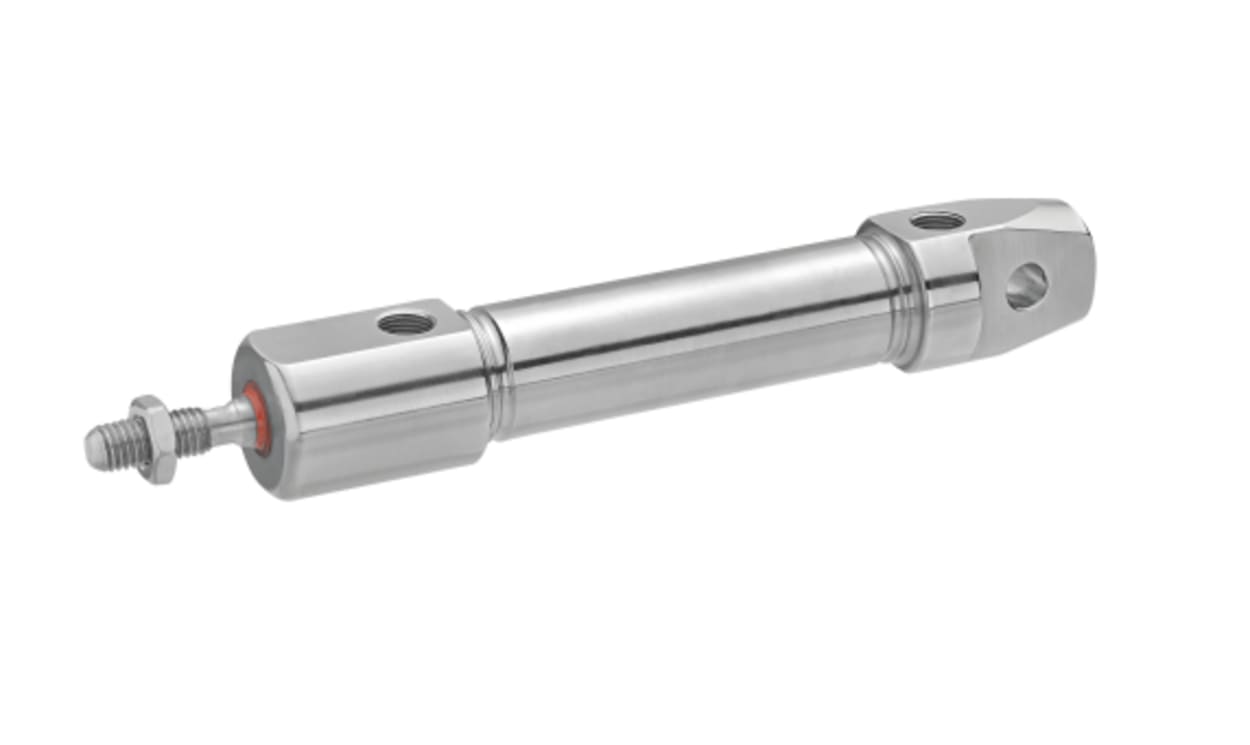

AVENTICS R412020427 | CSL-RD Double-Acting Round Cylinder | 16 mm Bore, 250 mm Stroke, Elastic Cushioning

Name: AVENTICS R412020427 | CSL-RD Double-Acting Round Cylinder | 16 mm Bore, 250 mm Stroke, Elastic Cushioning
Brand: Aventics
SKU: R412020427
Availability: InStock

Part Number : R412020427

The AVENTICS R412020427 is a CSL-RD double-acting cylinder sized at 16 mm bore by 250 mm stroke. Its M5 port thread, elastic cushioning and 10 bar pressure limit are the main details to check when ordering R412020427.

Bore 16 mm, stroke 250 mm
Cushioning type: elastic
M5 air ports
Rated to 10 bar maximum
Temperature range: -20 to +80 °C
Double acting to ISO 6432 with male piston rod thread

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R412020427
Action	Double
Bore	16mm
Stroke	250mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R412020427 | CSL-RD Double-Acting Round Cylinder | 16 mm Bore, 250 mm Stroke, Elastic Cushioning

DOWNLOAD CATALOG

R412020427 Datasheet - R412020427 A700000012670023
