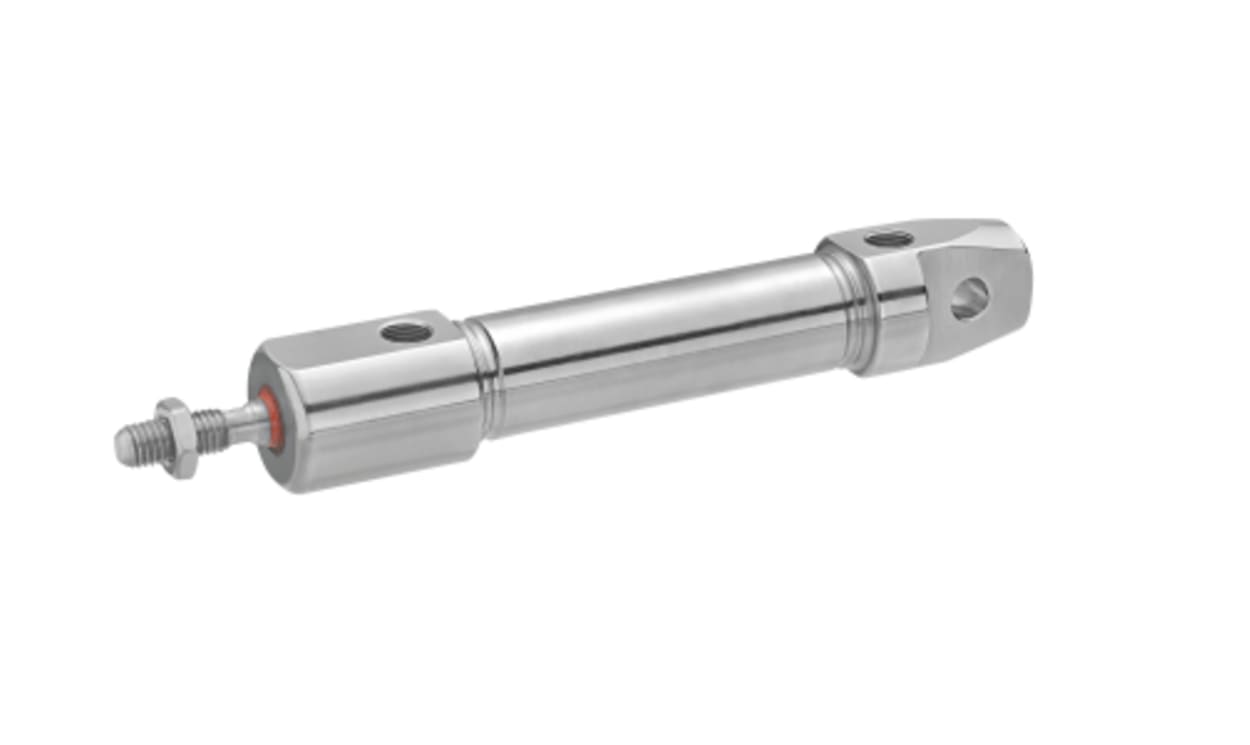

AVENTICS R412020513 | CSL-RD Double-Acting Round Cylinder | 25 mm Bore, 160 mm Stroke, Elastic Cushioning

Name: AVENTICS R412020513 | CSL-RD Double-Acting Round Cylinder | 25 mm Bore, 160 mm Stroke, Elastic Cushioning
Brand: Aventics
SKU: R412020513
Availability: InStock

Part Number : R412020513

This 25 mm bore CSL-RD cylinder, part number R412020513, travels 160 mm and works double acting up to 10 bar. For R412020513, AVENTICS lists elastic cushioning, G 1/8 pneumatic connections and a male piston rod thread.

Size: 25 mm bore x 160 mm stroke
Elastic end-position cushioning
Port thread: G 1/8
Pressure limit: 10 bar
Operating temperature -20 °C to +80 °C
Male piston rod thread; ISO 6432 double-acting design

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R412020513
Stroke	160mm
Action	Double
Bore	25mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R412020513 | CSL-RD Double-Acting Round Cylinder | 25 mm Bore, 160 mm Stroke, Elastic Cushioning

DOWNLOAD CATALOG

R412020513 Datasheet - R412020513 A700000012669483
