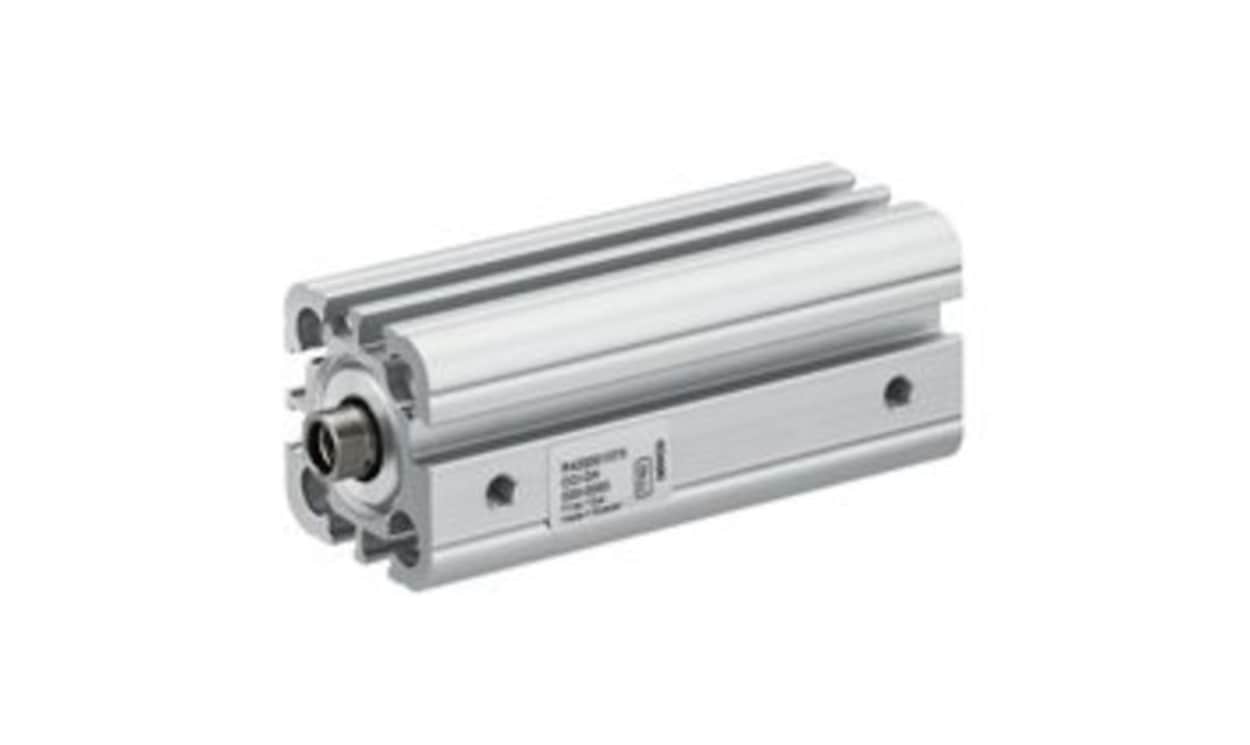

AVENTICS R422001073 Pneumatic Compact Cylinder - , 20mm Bore, 50mm Stroke, CCI Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R422001073 Pneumatic Compact Cylinder - , 20mm Bore, 50mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001073 Pneumatic Compact Cylinder - , 20mm Bore, 50mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001073
Availability: OutOfStock

Part Number : R422001073

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder, designed in accordance with ISO 21287, is engineered for outstanding performance in industrial applications. The series CCI's innovative construction provides a sleek, efficient profile that is easy to clean, making it ideal for environments requiring high hygiene standards. With its compatibility for long strokes and optimal cycle times, this cylinder is well-suited for demanding tasks, enabling quick and straightforward sensor installations along its entire length. Built with robustness in mind, it combines advanced materials with meticulous engineering to meet both functionality and durability requirements in varying conditions.

Offers double-acting functionality for versatile operations
Features elastic cushioning to enhance the longevity of components
Piston with integrated magnet for reliable sensing capabilities
Constructed from stainless steel and aluminium for improved durability
Operational limits include a broad temperature range for diverse environments
Designed to meet ATEX standards for applications in potentially explosive atmospheres
Simplified configuration options available for tailored solutions

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001073
Stroke	50mm
Action	Double
Bore	20mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
