AVENTICS R422001305 Pneumatic Compact Cylinder - , 32mm Bore, 25mm Stroke, CCI Series, Double Acting

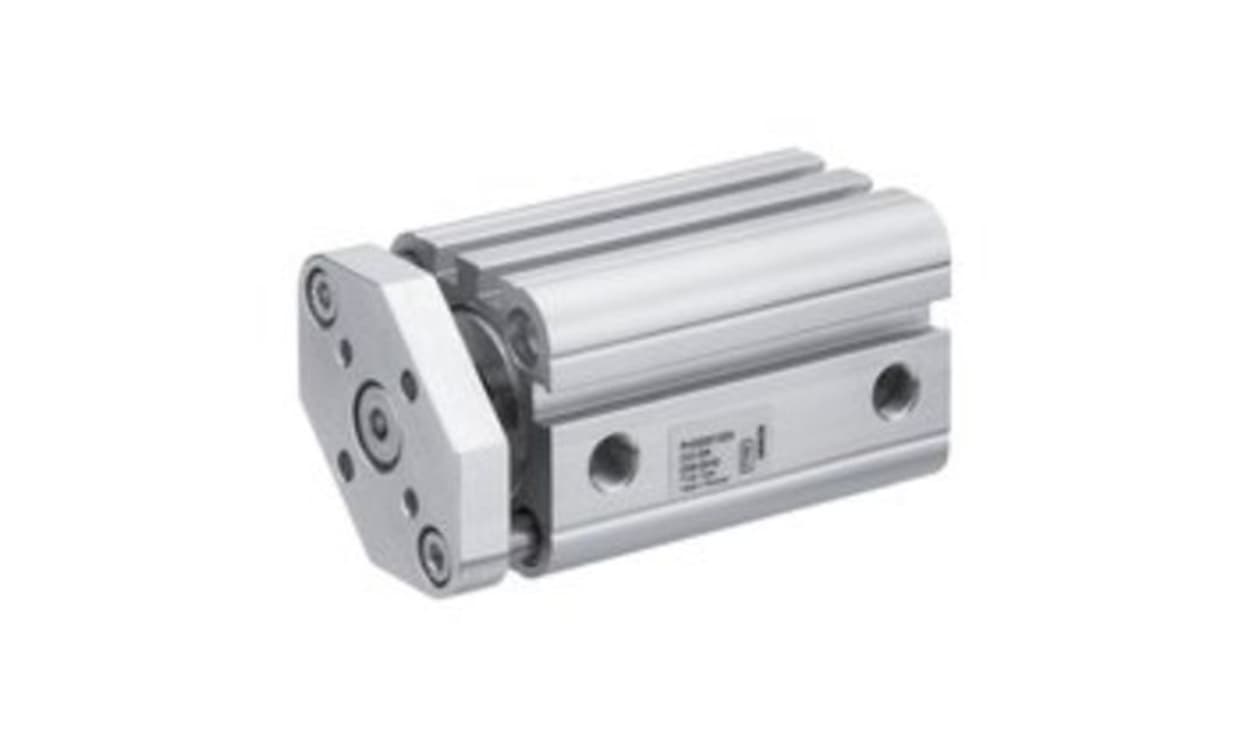

Name: AVENTICS R422001305 Pneumatic Compact Cylinder - , 32mm Bore, 25mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001305
Availability: OutOfStock

Part Number : R422001305

Availability: Sold out

Detailed Description
Specifications

The Aventics Series CCI compact cylinder ISO 21287 represents a pinnacle of innovative engineering, offering an ideal solution for applications requiring precision and efficiency. Its sleek design ensures easy maintenance and cleanliness, making it a preferred choice for industries seeking reliable performance in constrained spaces. With exceptional stroke lengths and optimised cycle times, this cylinder adeptly handles demanding operational tasks. The inclusion of easily installed sensors along its entire length enhances functionality, allowing for tailored applications across various industrial sectors. Built to meet rigorous standards, the Series CCI embodies robust construction without compromising agility, ensuring it meets the evolving needs of modern automation.

Designed for effortless installation with versatile sensor positioning
Compact construction enables use in space-restricted environments
Capable of handling high cycle rates for increased productivity
Offers a double-acting functional principle for efficient operation
Constructed to industry standards ensuring reliability under pressure
Elastic cushioning provides smooth operation and enhanced system longevity
Environmental compatibility makes it suitable for a range of applications
Robust material selection promotes durability and resistance to wear

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001305
Action	Double
Stroke	25mm
Bore	32mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
