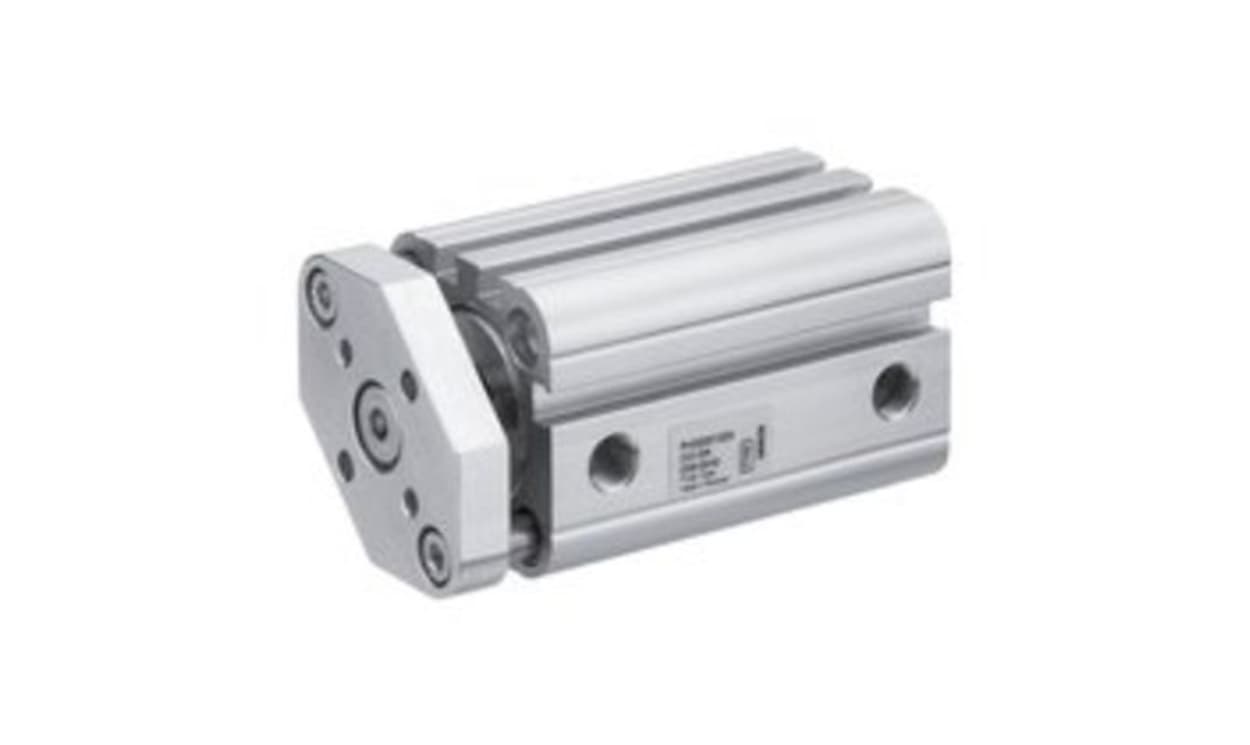

AVENTICS R422001316 Pneumatic Compact Cylinder - , 40mm Bore, 30mm Stroke, CCI Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R422001316 Pneumatic Compact Cylinder - , 40mm Bore, 30mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001316 Pneumatic Compact Cylinder - , 40mm Bore, 30mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001316
Availability: OutOfStock

Part Number : R422001316

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder, designed in accordance with ISO 21287 standards, represents innovation in pneumatic solutions. The series CCI delivers exceptional performance, offering advanced functionality in a sleek, easy-to-clean design. Built to accommodate long strokes while meeting the demands of optimized cycle times, this cylinder integrates sensors that can be affixed easily along its entire length. Ideal for industrial applications, it combines a lightweight aluminium body with robust internal components, ensuring reliability and efficiency under varying environmental conditions.

Engineered for double-acting functionality, enhancing productivity
Features elastic cushioning for smooth operation and longevity
Magnetic piston design allows for easy sensor installation
User-friendly installation makes for quick setup and reduced downtime
Constructed with a stainless steel piston rod for superior durability
Aluminium covers contribute to lightweight efficiency without compromising strength
Optional ATEX compliance offers flexibility for specific industrial settings
Extensive stroke length capabilities support diverse application needs
Optimised for low lubrication requirements, reducing maintenance costs
Allows for operation in a broad temperature range, enhancing versatility

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001316
Stroke	30mm
Action	Double
Bore	40mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
