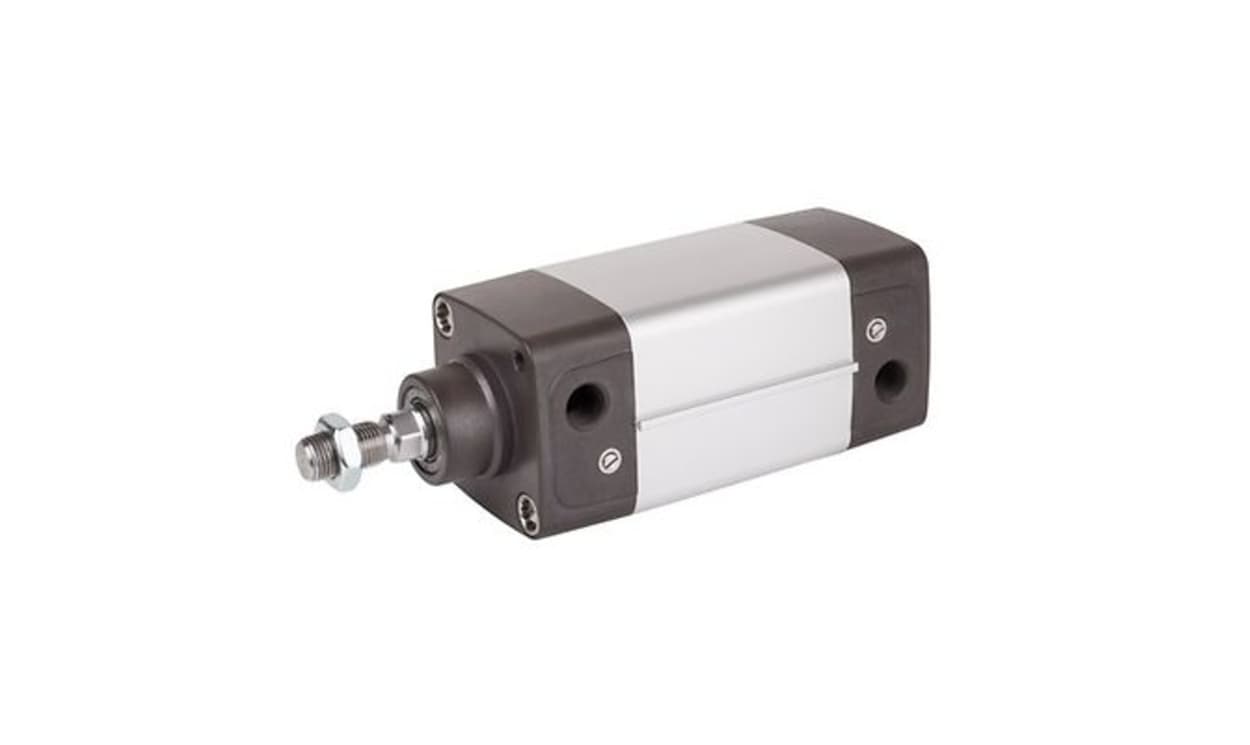

AVENTICS R480060083 | CCL-IS ISO 15552 Pneumatic Cylinder | 125 mm Bore, 100 mm Stroke, Double Acting
AVENTICS R480060083 is a 125 mm bore, 100 mm stroke CCL-IS cylinder conforming to ISO 15552. The double-acting 125 x 100 mm unit uses G 1/2 port threads and pneumatic cushioning.
- 100 mm stroke length, 125 mm bore diameter
- G 1/2 ports on this 100 mm stroke CCL-IS body
- Pneumatic cushioning, CCL-IS R480060083
- Rod end with male thread (R480060083)
- Up to 10 bar between -20 °C and +80 °C, R480060083
- CCL-IS ISO 15552 cylinder, part R480060083
- Detailed Description
- Specifications
- Downloads
Hygienic design suited for food processing applications
Constructed with exceptional materials for enhanced corrosion resistance
Double-acting functional principle providing efficient operation
Pneumatic adjustable cushioning for smooth functionality
Magnetic piston technology for improved precision
Operates effectively in a wide ambient temperature range
Low oil content requirements minimise maintenance needs
ATEX certification available for safety in explosive environments
Comprehensive options available via the Internet configurator
| Brand | AVENTICS |
| Manufacturer Series | CCL-IS |
| Model Number P | R480060083 |
| Action | Double |
| Bore | 125 mm (4.92 in) |
| Stroke | 100 mm (3.94 in) |
| Pneumatic Connection | G 1/2 |
| Port Connection | G 1/2 |
| Cushioning Type | Pneumatic Cushioning |
| Maximum Operating Pressure | 10 bar (145 psi) |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Piston Rod Thread Gender | Male |
| ISO Standard | 15552 |
