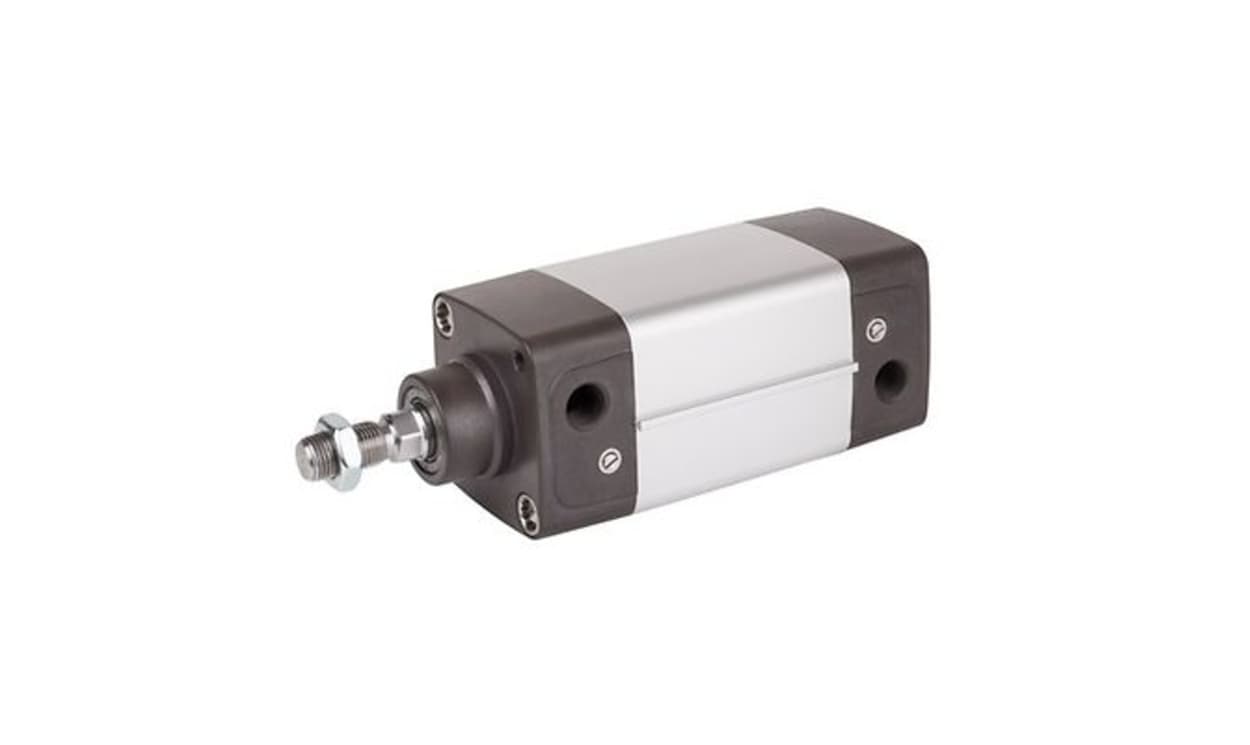

AVENTICS R480060083 ISO Standard Cylinder - , 125mm Bore, 100mm Stroke, CCL-IS Series, Double Acting

Name: AVENTICS R480060083 ISO Standard Cylinder - , 125mm Bore, 100mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480060083
Availability: OutOfStock

Part Number : R480060083

Availability: Sold out

Detailed Description
Specifications

The Aventics CCL-IS series cylinder represents a pinnacle of hygienic design, purpose-built for the food sector. Engineered to complement existing systems while adhering to ISO 15552 standards, this cylinder is the ideal solution for applications requiring precision and cleanliness. With a unique capability to configure air connections, it allows for increased flexibility in tubing designs. Its robust construction ensures reliability, even in demanding industrial environments, making it a smart choice for businesses seeking optimal performance without compromising on safety or hygiene.

Designed for maximum flexibility with air connection configurations
Hygienic design suited for food processing applications
Constructed with exceptional materials for enhanced corrosion resistance
Double-acting functional principle providing efficient operation
Pneumatic adjustable cushioning for smooth functionality
Magnetic piston technology for improved precision
Operates effectively in a wide ambient temperature range
Low oil content requirements minimise maintenance needs
ATEX certification available for safety in explosive environments
Comprehensive options available via the Internet configurator

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480060083
Stroke	100mm
Action	Double
Bore	125mm
Port Connection	G 1/2
Pneumatic Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
