AVENTICS R480079809 ISO Standard Cylinder - , 125mm Bore, 160mm Stroke, PRA Series, Double Acting

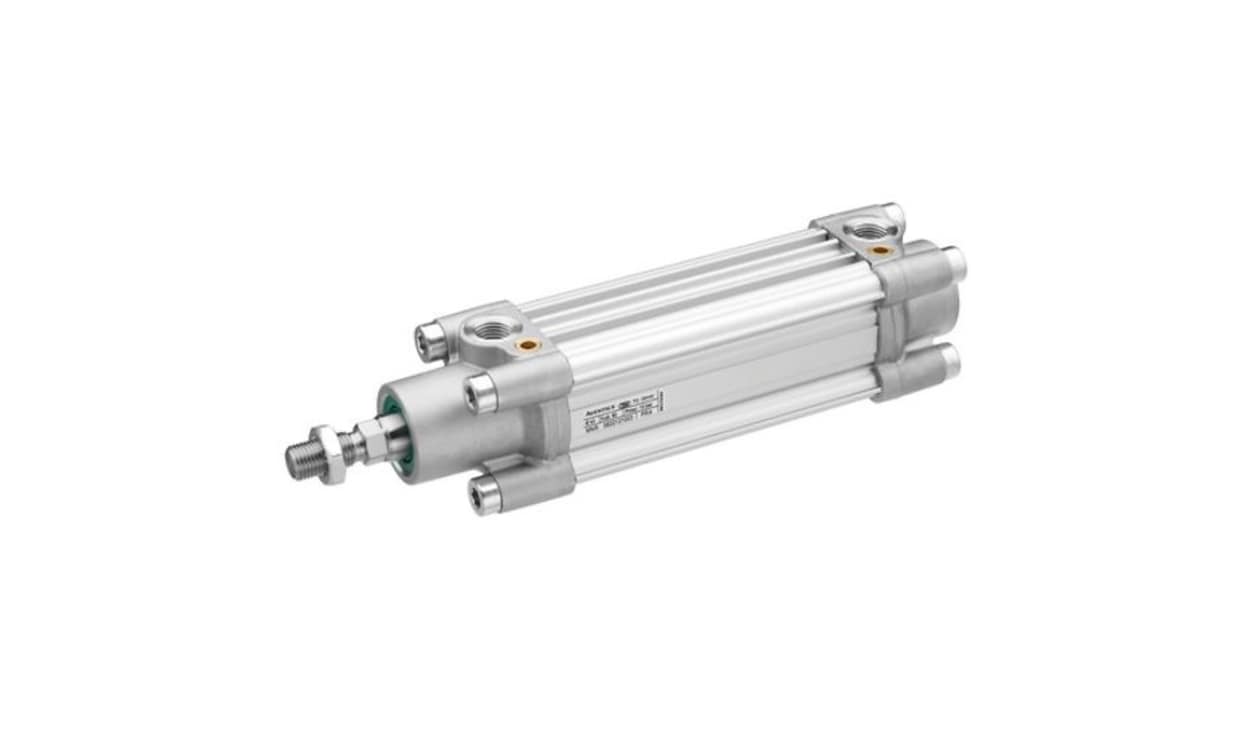

Name: AVENTICS R480079809 ISO Standard Cylinder - , 125mm Bore, 160mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R480079809
Availability: OutOfStock

Part Number : R480079809

Availability: Sold out

Detailed Description
Specifications

The Aventics Series PRA profile cylinder, adhering to ISO 15552 standards, embodies precision engineering for diverse applications across various industries. Designed with a compact profile, this cylinder integrates sensor slots to enhance operational efficiency. Its robust construction makes it suitable for general automation and machine construction, while also catering to specific industry needs. With a functional principle of double-acting operation, the Series PRA is poised to deliver optimal performance with adjustable pneumatic cushioning. Its versatile design allows for effective use in both standard and demanding environments, offering reliability and ease of maintenance. The wide temperature and pressure ranges further ensure that this cylinder excels in any application, whether in harsh conditions or routine tasks.

Compact design optimises space and facilitates integration
Double-acting functionality enhances efficiency in operation
Integrated sensor slots allow for easy monitoring and control
Pneumatic adjustable cushioning protects against mechanical wear
Wide operational temperature range accommodates diverse environments
Available ATEX certification for use in potentially explosive atmospheres
Robust materials ensure long-lasting performance and durability
Minimal oil content requirements lead to reduced maintenance frequency
Flexible stroke length up to 2750 mm addresses various application needs
Lightweight design simplifies installation and handling

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R480079809
Action	Double
Stroke	160mm
Bore	125mm
Port Connection	G 1/2
Pneumatic Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
