AVENTICS R480141464 Double Acting Rodless Pneumatic Cylinder 400mm Stroke, 32mm Bore

Name: AVENTICS R480141464 Double Acting Rodless Pneumatic Cylinder 400mm Stroke, 32mm Bore
Brand: Aventics
SKU: R480141464
Availability: OutOfStock

Part Number : R480141464

Availability: Sold out

Detailed Description
Specifications

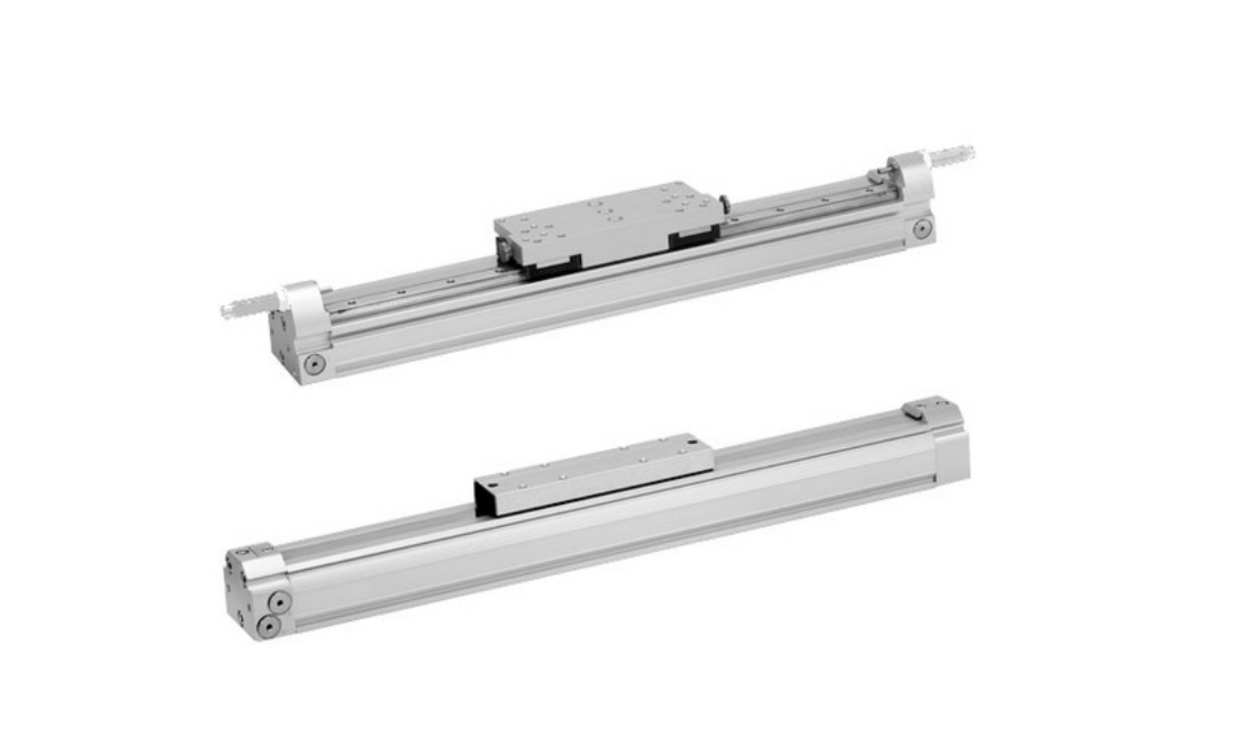

The Aventics RTC-BV Series Rodless cylinders features an oval piston which enables higher loads and torques with highly compact designs. It offers minimal leakage and a wide range of speeds thanks to a special internal sealing strip and grease. Its one piece slide and piston increase stability.

Double acting
With magnetic piston
Integrated guide
Basic version
Cushioning pneumatically adjustable

Brand	AVENTICS
Stroke	400mm
Bore	32mm
Manufacturer Series	RTC-BV
Action	Double
Maximum Operating Pressure	8 bar
Cushioning Type	Pneumatic Adjustable
Port Connection	G 1/8
Stroke Interval Weight	0.031 @ 10 mm kg/mm
Size Type	Standard
Test Weight	1.9 kg
