AVENTICS R480141470 Double Acting Rodless Pneumatic Cylinder 900mm Stroke, 32mm Bore

Name: AVENTICS R480141470 Double Acting Rodless Pneumatic Cylinder 900mm Stroke, 32mm Bore
Brand: Aventics
SKU: R480141470
Availability: OutOfStock

Part Number : R480141470

Availability: Sold out

Detailed Description
Specifications

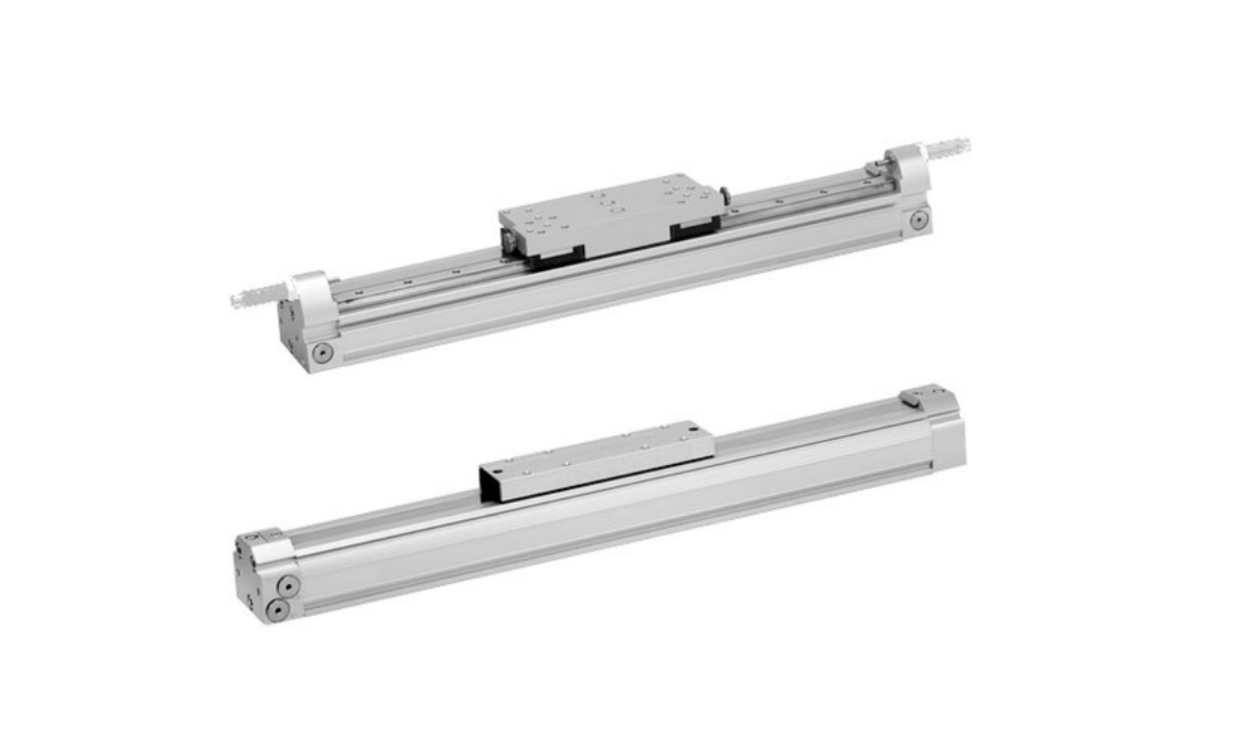

The Aventics RTC-BV Series Rodless cylinders features an oval piston which enables higher loads and torques with highly compact designs. It offers minimal leakage and a wide range of speeds thanks to a special internal sealing strip and grease. Its one piece slide and piston increase stability.

Double acting
With magnetic piston
Integrated guide
Basic version
Cushioning pneumatically adjustable

Brand	AVENTICS
Stroke	900mm
Bore	32mm
Manufacturer Series	RTC-BV
Action	Double
Maximum Operating Pressure	8 bar
Cushioning Type	Pneumatic Adjustable
Port Connection	G 1/8
Stroke Interval Weight	0.031 @ 10 mm kg/mm
Test Weight	1.9 kg
Size Type	Standard
