AVENTICS R480141471 Double Acting Rodless Pneumatic Cylinder 1000mm Stroke, 32mm Bore

Name: AVENTICS R480141471 Double Acting Rodless Pneumatic Cylinder 1000mm Stroke, 32mm Bore
Brand: Aventics
SKU: R480141471
Availability: OutOfStock

Part Number : R480141471

Availability: Sold out

Detailed Description
Specifications

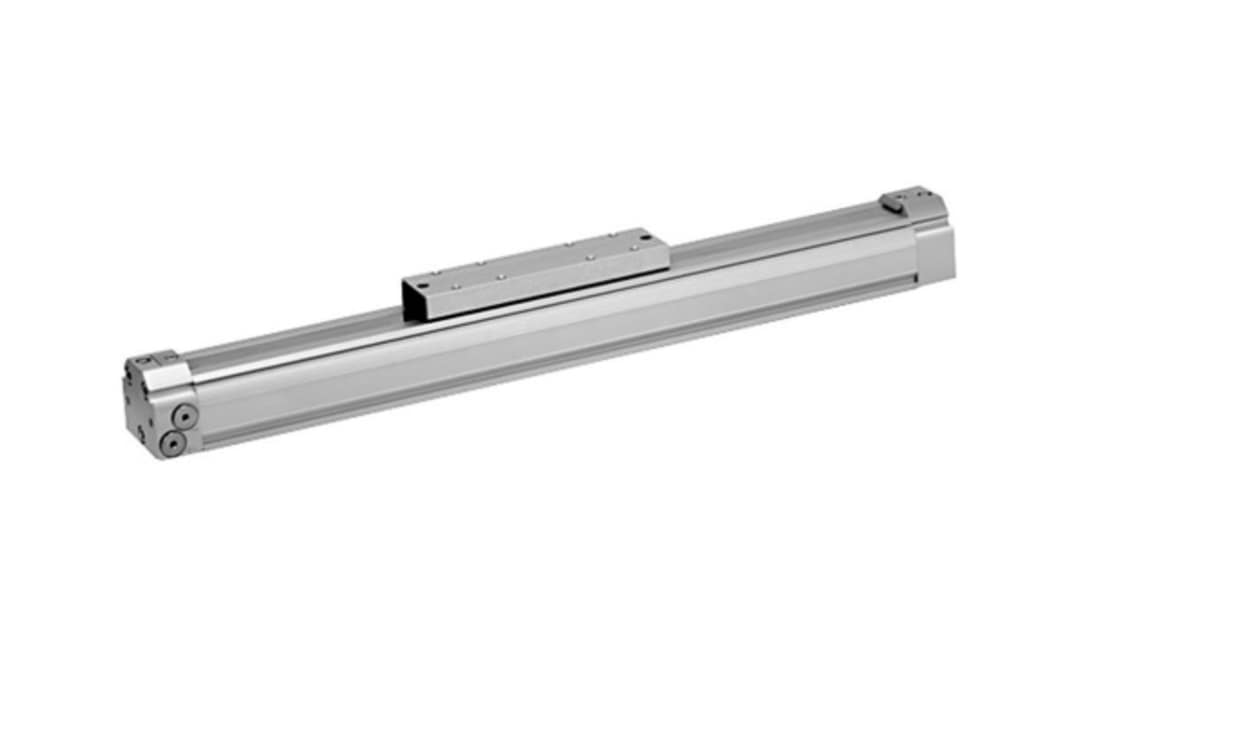

The Aventics Rodless Cylinder from the series RTC offers an innovative solution for linear motion, optimised for compact machine designs. Its unique oval piston shape, coupled with a one-piece slide and piston unit, ensures maximum efficiency without compromising on available space. It caters to diverse industrial applications while maintaining high repeatability across a broad speed spectrum. The RTC series includes various versions, ranging from slide bearings to heavy-duty models, ensuring reliable performance for both light and heavy loads.

Constructed from durable materials including anodised aluminium and polyurethane seals
Designed for easy integration with existing systems facilitating a smooth upgrade process
Features adjustable cushioning to enhance performance and protect machinery
Suitable for both indoor and outdoor applications thanks to its extensive temperature range
Low maintenance due to lifetime lubrication ensuring reliability throughout its life cycle

Brand	AVENTICS
Stroke	1000mm
Bore	32mm
Manufacturer Series	RTC-BV
Action	Double
Maximum Operating Pressure	8 bar
Cushioning Type	Pneumatic Adjustable
Port Connection	G 1/8
Weight	1.4kg
Stroke Interval Weight	0.031 @ 10 mm kg/mm
Size Type	Standard
