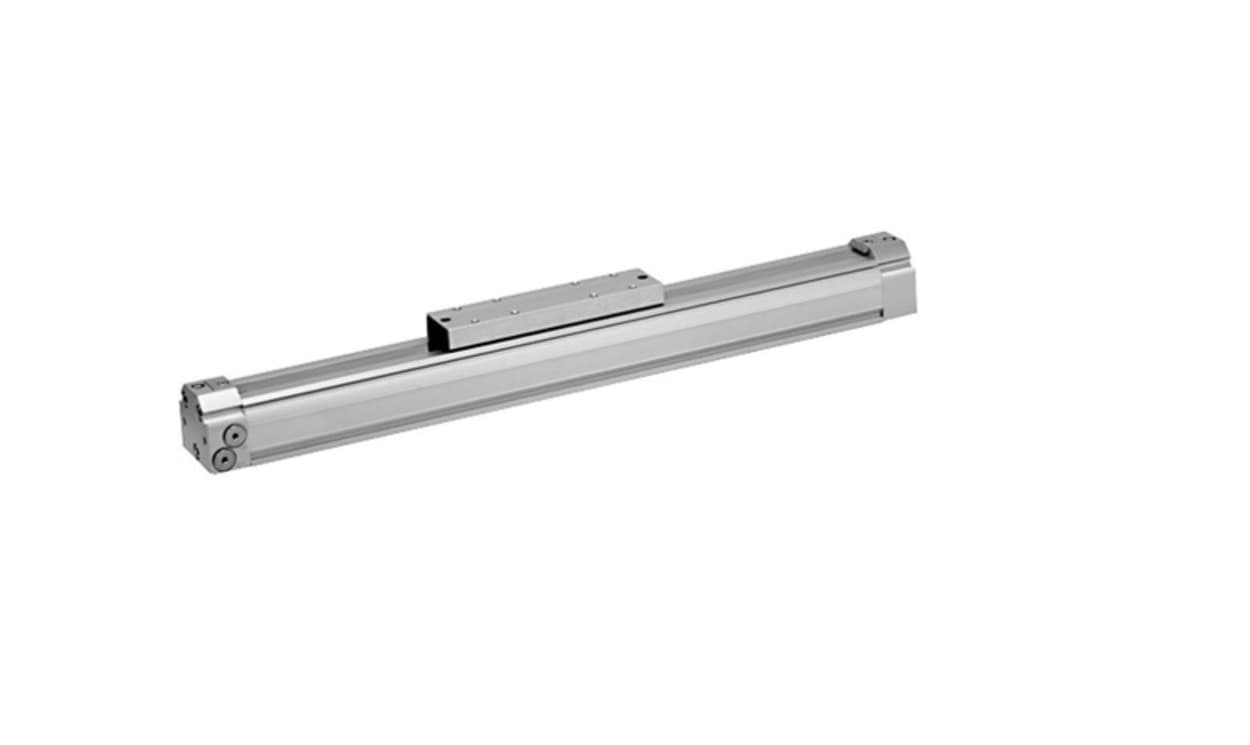

AVENTICS R480141472 Double Acting Rodless Pneumatic Cylinder 400mm Stroke, 40mm Bore

Name: AVENTICS R480141472 Double Acting Rodless Pneumatic Cylinder 400mm Stroke, 40mm Bore
Brand: Aventics
SKU: R480141472
Availability: InStock

Part Number : R480141472

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Rodless Cylinder from the series RTC offers an innovative solution for linear motion, optimised for compact machine designs. Its unique oval piston shape, coupled with a one-piece slide and piston unit, ensures maximum efficiency without compromising on available space. It caters to diverse industrial applications while maintaining high repeatability across a broad speed spectrum. The RTC series includes various versions, ranging from slide bearings to heavy-duty models, ensuring reliable performance for both light and heavy loads.

Constructed from durable materials including anodised aluminium and polyurethane seals
Designed for easy integration with existing systems facilitating a smooth upgrade process
Features adjustable cushioning to enhance performance and protect machinery
Suitable for both indoor and outdoor applications thanks to its extensive temperature range
Low maintenance due to lifetime lubrication ensuring reliability throughout its life cycle

Brand	AVENTICS
Stroke	400mm
Bore	40mm
Manufacturer Series	RTC-BV
Action	Double
Maximum Operating Pressure	8 bar
Cushioning Type	Pneumatic Adjustable
Port Connection	G 1/4
Stroke Interval Weight	0.044 @ 10 mm kg/mm
Test Weight	2.09 kg
Size Type	Standard

AVENTICS R480141472 Double Acting Rodless Pneumatic Cylinder 400mm Stroke, 40mm Bore

DOWNLOAD CATALOG

R480141472 Datasheet - R480141472 A700000012583004

R480141472 Datasheet - R480141472 A700000012584584
