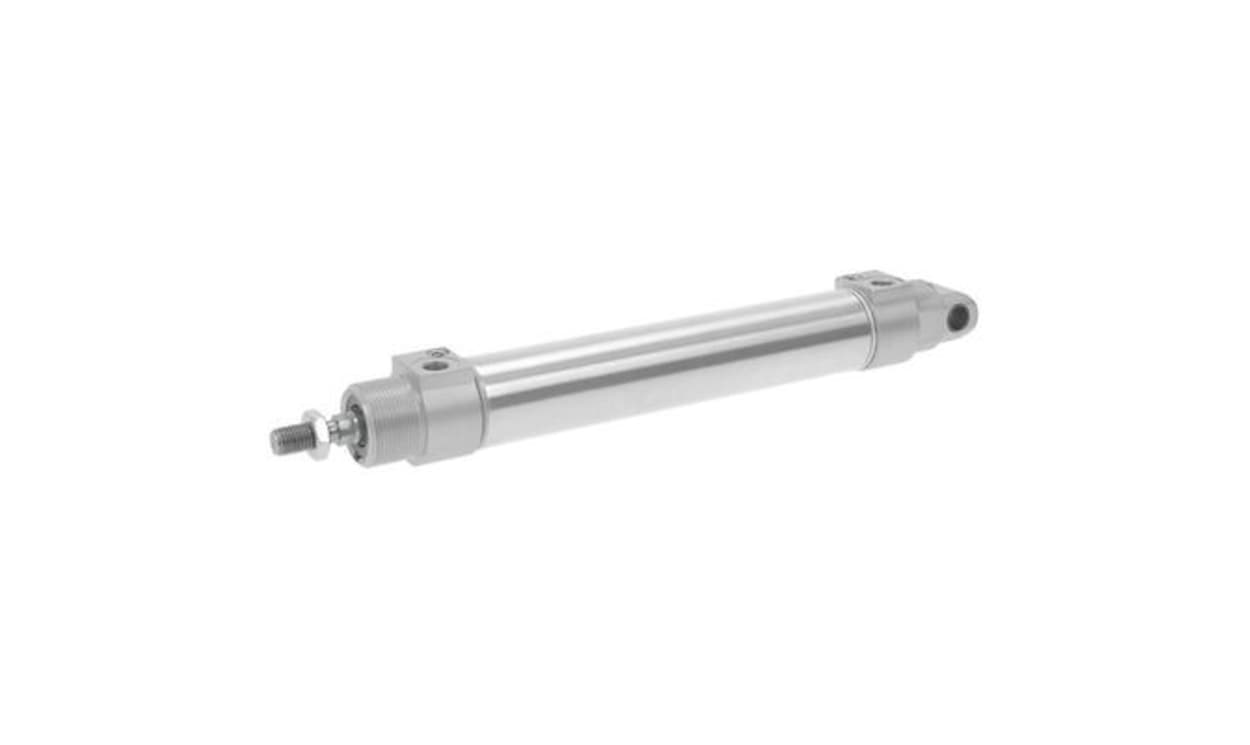

AVENTICS R481609455 Roundline Cylinder - , 63mm Bore, 125mm Stroke, RPC Series, Double Acting

Name: AVENTICS R481609455 Roundline Cylinder - , 63mm Bore, 125mm Stroke, RPC Series, Double Acting
Brand: Aventics
SKU: R481609455
Availability: OutOfStock

Part Number : R481609455

Availability: Sold out

Detailed Description
Specifications

The Aventics Series RPC round cylinder from aventics is engineered for both efficiency and versatility, making it the ideal solution for a range of applications in industrial settings. Designed with a double-acting functional principle, this cylinder combines robust performance with various connection options to fulfil diverse machine automation needs. Its food grade lubricants and easy-to-clean features make it particularly suitable for use in packaging applications within the food industry, ensuring compliance with stringent hygiene standards. The cylinder also meets ISO 6431 standards, affirming its reliability and quality in rigorous environments. With a comprehensive operational temperature range and ATEX optional certification, the Series RPC is tailored for excellence in challenging conditions, providing both safety and peace of mind to users.

Designed for high performance in industrial environments
Complies with ISO 6431 standards for guaranteed reliability
Offers food grade lubricants for hygiene-sensitive applications
Features double-acting operation for maximum efficiency
Available with customized connection options for easy integration
Pneumatic adjustable cushioning enhances operational control
Constructed with durable materials to withstand harsh conditions
Wide operational temperature range accommodates varying environments
ATEX optional certification available for additional safety
Simplified maintenance with easy-to-clean design

Brand	AVENTICS
Manufacturer Series	RPC
Model Number p	R481609455
Action	Double
Bore	63mm
Stroke	125mm
Pneumatic Connection	G 3/8
Port Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6431
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
