AVENTICS R481609466 Roundline Cylinder - , 32mm Bore, 50mm Stroke, RPC Series, Single Acting

Name: AVENTICS R481609466 Roundline Cylinder - , 32mm Bore, 50mm Stroke, RPC Series, Single Acting
Brand: Aventics
SKU: R481609466
Availability: OutOfStock

Part Number : R481609466

Availability: Sold out

Detailed Description
Specifications

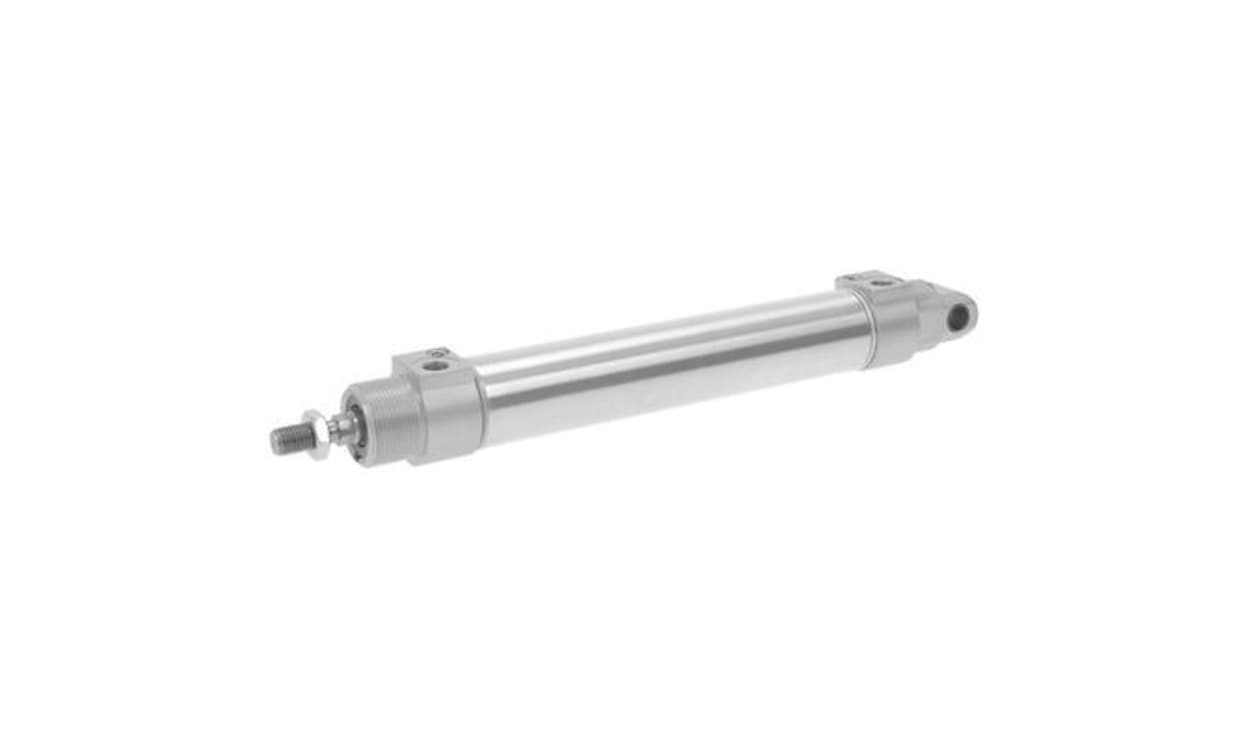

The Aventics Series RPC round profile cylinder is designed to enhance efficiency across various industrial applications. This innovative cylinder combines ease of maintenance with multiple connection options, making it an ideal choice for diverse machine automation needs. With its robust construction and compatibility with food-grade lubricants, the Series RPC is particularly suited for use within the food industry, offering peace of mind for hygiene-sensitive operations. Its unique design caters to standard applications while ensuring seamless performance under pressure, thanks to elastic cushioning and a magnetic piston. The cylinders not only support high reliability but also provide adaptability in complex settings, ensuring that your equipment performs optimally under varying environmental conditions.

Designed for easy cleaning and maintenance, crucial for hygiene-focused industries
Compatible with multiple connection options to suit diverse industrial setups
Features a single-acting functional principle that enhances operational efficiency
Constructed with food-grade lubricants, ensuring safety in food industry applications
Offers elastic cushioning, which helps reduce impact noise and prolongs cylinder life
Utilises a magnetic piston for enhanced performance and accuracy
Capable of operating under a wide range of temperatures, from -20 °C to 80 °C
Robust materials such as stainless steel and polyurethane ensure durability

Brand	AVENTICS
Manufacturer Series	RPC
Model Number p	R481609466
Bore	32mm
Action	Single
Stroke	50mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6431
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
