Bench Multimeter | Dual Measurement | with USB, RS232, LAN/LXI and GPIB Interfaces

Name: Bench Multimeter | Dual Measurement | with USB, RS232, LAN/LXI and GPIB Interfaces
Brand: Aim Tti
SKU: 1908P
Availability: OutOfStock

Part Number : 1908P

A USB link is built inside the 1908 multimeter for remote control and readback. The 1908P is appropriate for a larger range of system applications because it includes USB, RS232, GPIB, and LXI compatible LAN interfaces. Both types can be powered by internal batteries or AC lines, however the 1908P needs AC lines to operate the remote interfaces.

Availability: Sold out

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

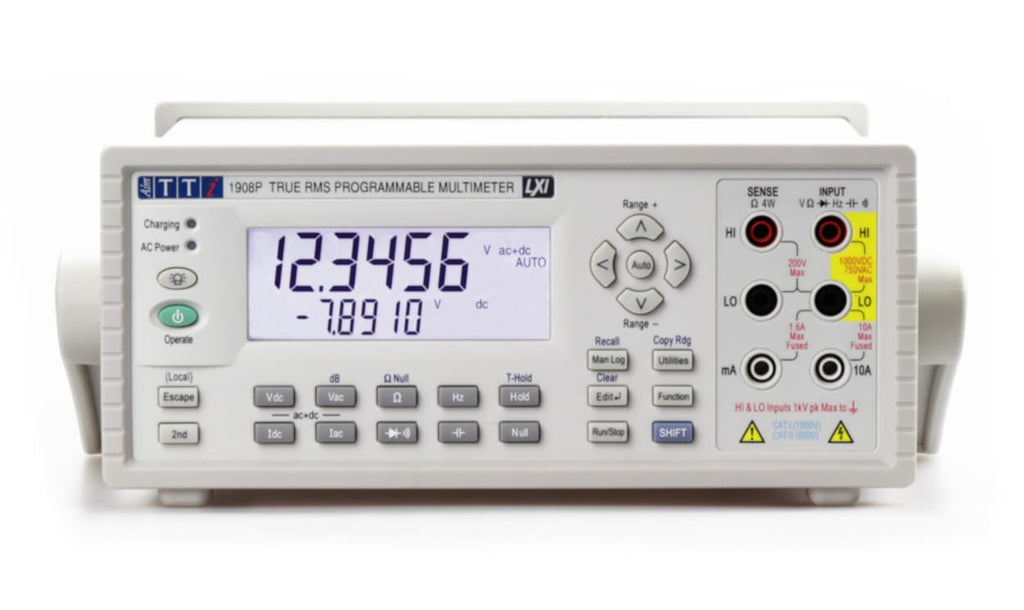

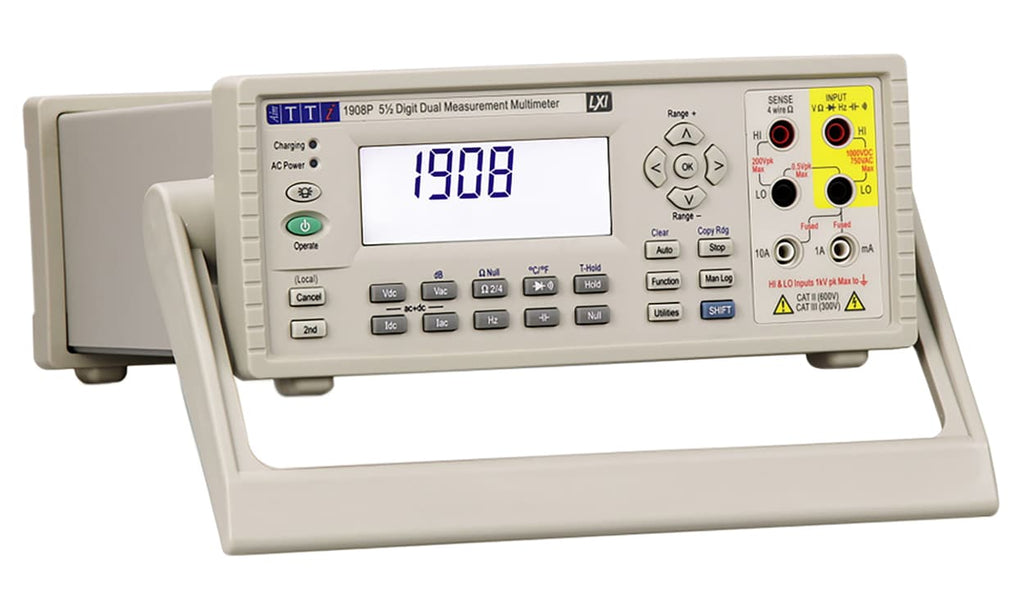

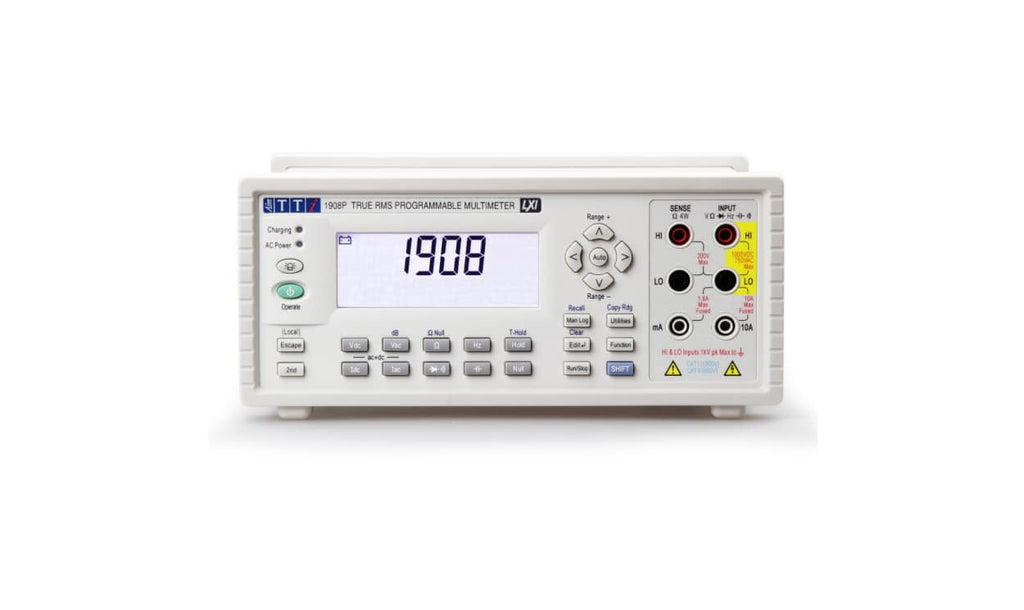

Aim-TTI 1908P Series Dual Measurement Bench Multimeter

Aim-TTi 1908 Series is a dual measurement, dual display bench-top/portable multimeter. It features continuity and diode test, automatic or manual ranging, linear scaling with offset, dB measurements, limits comparison, percentage deviation (%), min-max storage, power measurement in watts or VA, automatic data logging and external triggering. The logger function can store up to 500 readings from the main display in non-volatile memory. The two displays can be used to display a measurement along with the selected range (e.g. 100 Vdc), a measurement in two different units (e.g. AC volts and dBm), the result of a calculated function (e.g. value and % deviation), two parameters of one signal (e.g. AC and DC volts) or two different signals (e.g. AC volts and DC current). Software 1908-PC Link provides remote control of main functions and logging function with graphical and tabular displays (logged data can be exported to a CSV file). Model 1908P can be remotely controlled via its RS232, USB or LAN interface. Model 1908 (non â€™Pâ€™) can only be controlled via USB.

For an optional GPIB module see stock number 144-5481.

Features and Benefits

Affordable 5.5 digit high performance bench/portable multimeter, 120 000 counts

Dual display (main display and secondary display) and dual measurement capability

Mains power or Internal rechargeable batteries for true portability

High accuracy and resolution 0.02%, 1 Î¼V, 0.1 Î¼A, 1 mÎ©

Manual or Auto-ranging

True RMS AC and AC+DC measurement

DC and AC volts, DC and AC current, resistance, capacitance, frequency, and temperature measurement

Measurement post-processing

Continuity and diode checks

Two or four wire selectable ohms measurement

Display nulling and ohms null

Selectable measurement speed

Touch hold mode - holds onto a stable reading until updated

500 point data logger with timer

Temperature measurement for PT100 or PT1000 sensors

Wide range of computing functions e.g. Ax + B

External input/output remote triggering

Closed case calibration

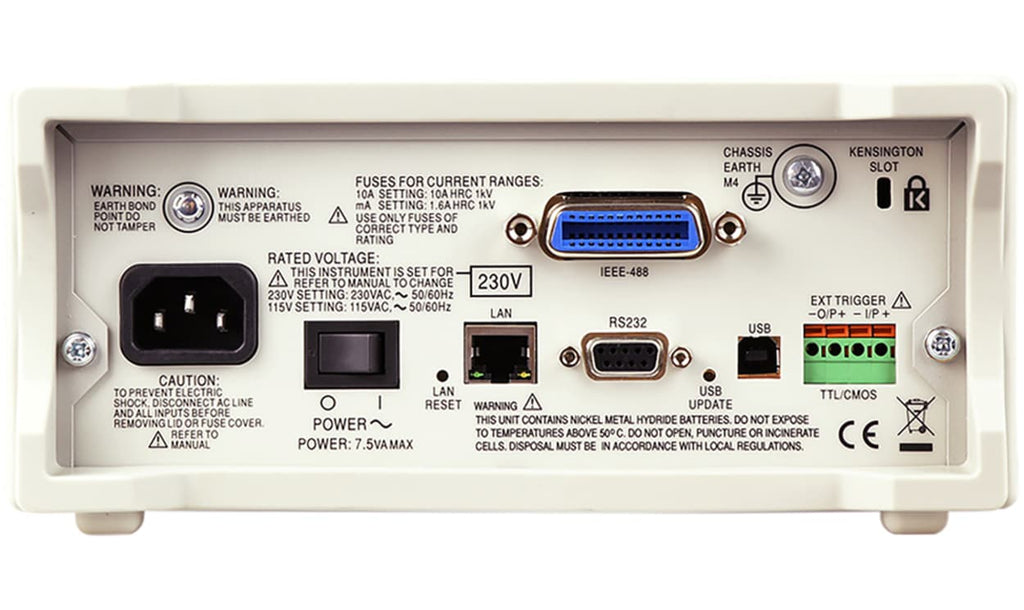

USB interface standard (1908 & 1908P) plus RS232, LAN/LXI

Kensington security slot incorporated

Dimensions 250 x 97 x 295 mm

Weight 3.2 kg

Note

In dual measurement mode a completely independent but complementary measurement can be made and displayed on the secondary display. The two independent measurements are made alternately, not simultaneously, and the display update rate for each measurement is consequently reduced (this is not the same as dual display mode, where both a measurement and a modified version of that measurement are displayed e.g. ac Volts and the dB equivalent).

Standards

EN61010-1, EN61010-2-030 & EN61010-2-033, EN61326-1 EMC

Supplied with

IVI driver, LV/CVI driver, USB driver

Battery type	NimH
Current range	10 mA -10 A
Resolution	1 uV (0.001 mV)
Voltage	Max 750 V
Weight	7.05 LBS

High accuracy and resolution: 0.02%, 1µV, 0.1µA, 1mΩ
True RMS AC, Frequency, capacitance and temperature measurements
Wide range of computing functions e.g. Ax + B
Dual Measurement Bench Multimeter with USB, RS232, LAN/LXI and GPIB Interfaces
Affordable 5.5 digit high performance bench/portable multimeter
Dual display and dual measurement capability
Mains power or Internal rechargeable batteries for true portability
