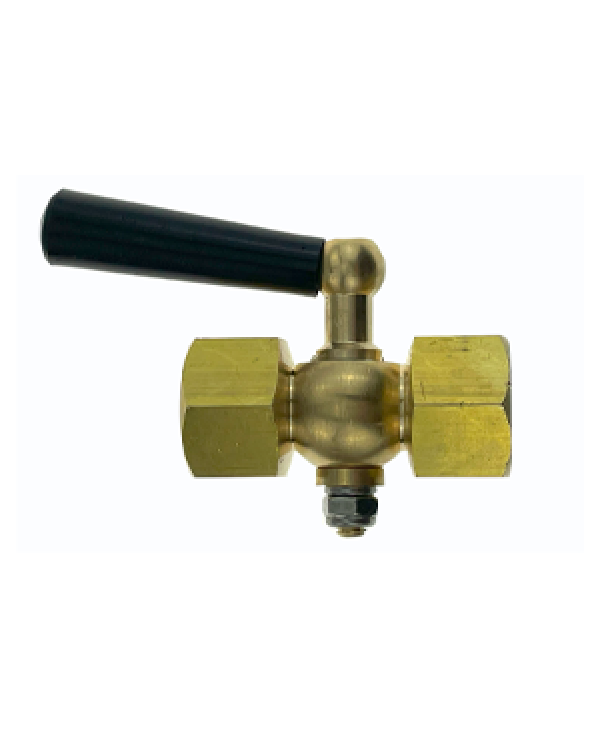

Brannan 39/003/0 | Brass Pressure Gauge Cock | 1/2" BSP F & F, without vent hole
Part Number : 39/003/0
Brannan 39/003/0 is a brass pressure gauge cock with 1/2" BSP female-to-female connections, supplied as the standard version without vent hole. Made to DIN 16261 PN16 for a maximum pressure of 16 bar, it lets a pressure gauge be isolated from the pressure medium to protect against gauge failure and removed for servicing. Typical uses are heating, ventilation and air-conditioning, hot water and industrial systems.
Key features
- Isolates the gauge from the pressure medium
- Allows the gauge to be removed for servicing
- To DIN 16261 PN16, maximum pressure 16 bar
- Brass CZ121 / CW614N wetted parts, black plastic handle
- Ambient and medium temperature -20 to +50 °C
For pricing, please contact our experts.
