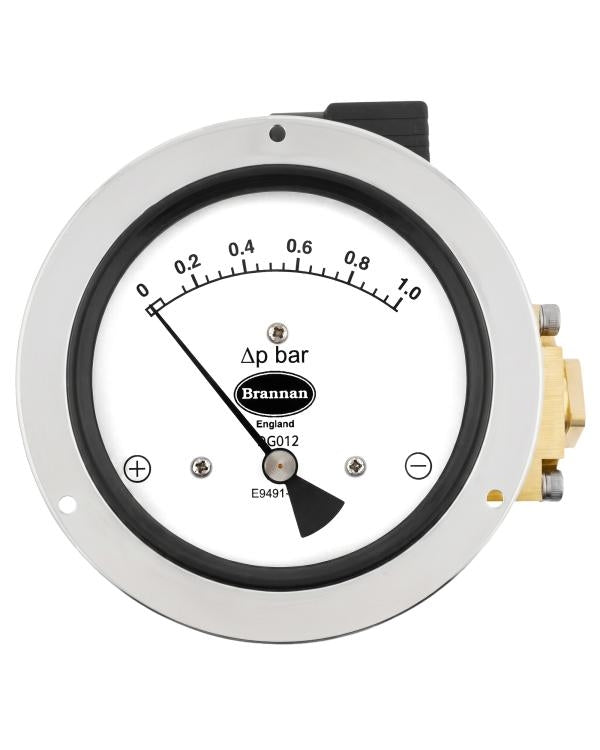

Brannan DG012 | Differential Pressure Gauge, Diaphragm Type | 0-0.075 to 0-4 bar
Part Number : DG012
Brannan DG012 measures differential pressure through a convoluted diaphragm with magnetic coupling, so there is no migration of process media and zero leakage from the high to the low port. That makes it the choice where cross-port migration is not permitted, such as leak detection and filtration. Ranges start at 0 to 0.075 bar and go up to 0 to 4 bar, with a maximum static pressure of 100 bar.
Key features
- Convoluted diaphragm with magnetic coupling
- Zero leakage between high and low ports
- Ranges 0 to 0.075 bar through to 0 to 4 bar
- Aluminium, brass, SS316 or Monel body; IP66

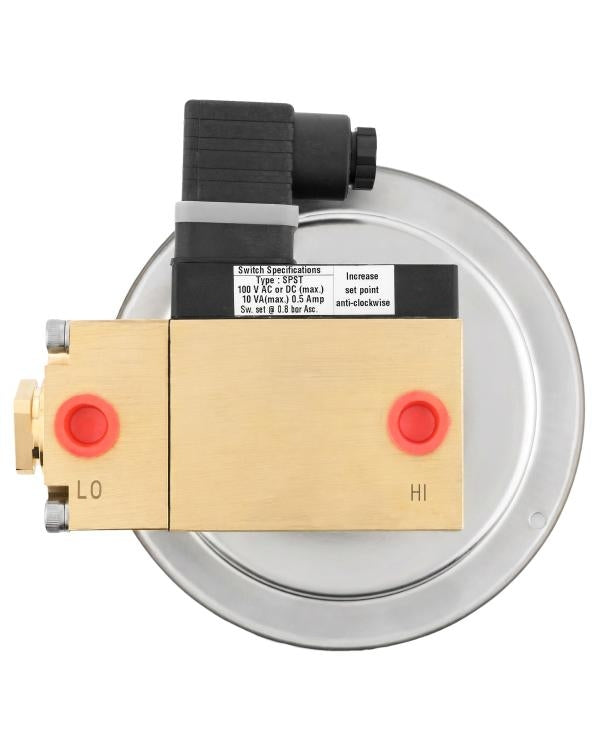

- ±2% FS accuracy, optional switch output
Brannan offers certification, a certificate traceable to recognised national standards, or a statement of conformity for this gauge.
For pricing, please contact our experts.
