- Specifications
- Features
Actual air consumption | Metric: 17 l/s 1020 l/mn Imperial: 36.04 cfm |
Air inlet thread size | 3/8" |
Average air consumption | Metric: 8.5 l/s 510 l/mn Imperial: 36.04 cfm |
Brand | Chicago Pneumatic |
Cup wheel Diam. | - mm |
Free speed air consumption | Metric: 18.2 l/s Imperial: 38.59 cfm |
Free Speed | 12000 rpm |
Length | Metric: 231 mm Imperial: 9.2" |
Min. Hose Size | Metric: 10 mm Imperial: 3/8" |
Model Number | CP3450-12AA5 |
Net weight | Metric: 1.7 kg Imperial: 3.7 lb |
Power | Metric: 810 W Imperial: 1.1 hp |
Product Number | 6151604040 |
Rear exhaust | X |
Sound Power | 106 db(A) |
Sound pressure | 95 db(A) |
Spindle thread | M14 |
Vibration ISO | ISO-28927-1 |
Vibration uncertainty (K) | 2.9 m/s2 |
Vibration | 8.1 m/s2 |
Wheel size | Metric: 125 mm Imperial: 5" |
- Constant lubrication bevel gear design
- Low profile angle head design
- Insulating composite cover
- 5" (125 mm) wheel capacity
- 1.1 hp (810 W) high torque motor
- 12,000 rpm free speed
- M14 spindle
- Orientable safety lever
- Optional low vibration side handle
- Rear exhaust

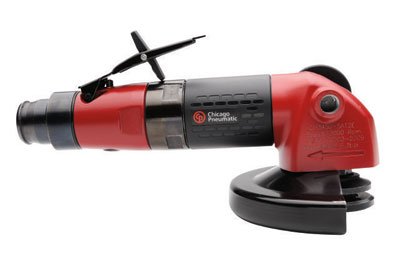

Chicago Pneumatic CP3450-12AA5 5 Angle grinders
