Chicago Pneumatic CP7773 1 Impact Wrenches 136-1288NM

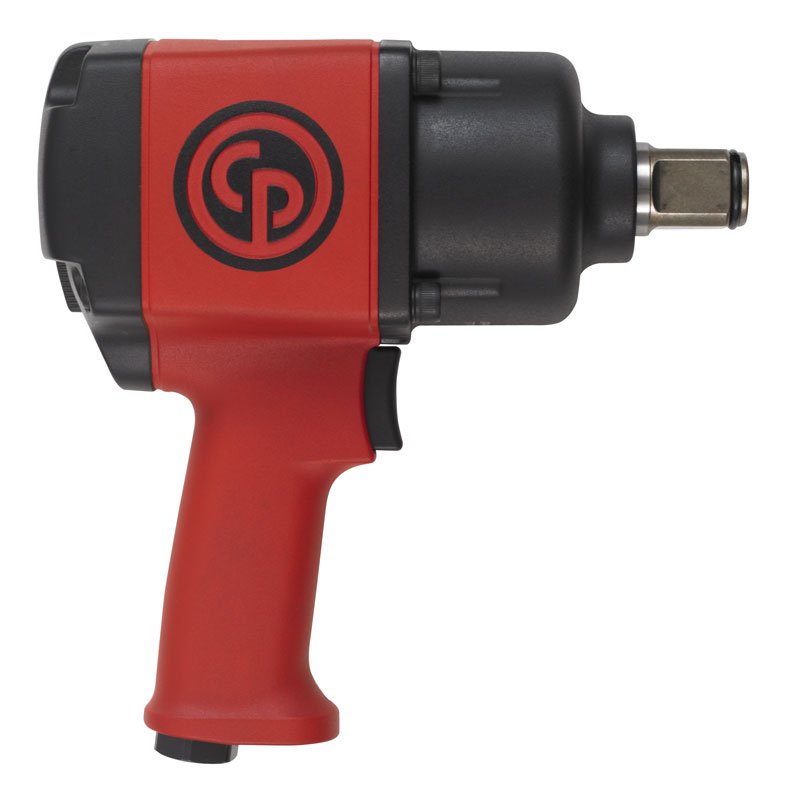

Name: Chicago Pneumatic CP7773 1 Impact Wrenches 136-1288NM
Brand: ChicagoPneumatic
SKU: CP7773
Price: 3681.04 AED
Availability: InStock

Part Number : CP7773

Compact & Powerful. Ideal for General Maintenance applications. Powerful motor and durable clutch. Operator comfort due to reduced noise level.Range: 136 - 1288 Nm 100 - 950 ft.lbs

Availability: low stock

Specifications
Features

Actual air consumption	Metric: 14.2 l/s Imperial: 30 cfm
Air inlet thread size	3/8"
Average air consumption	Metric: 3.5 l/s Imperial: 7.5 cfm
Brand	Chicago Pneumatic
Free Speed	6300 rpm
Length	Metric: 234 mm Imperial: 9.2"
Maximum Torque (reverse)	Metric: 1630 Nm Imperial: 1200 ft.lbs
Min. Hose Size	Metric: 13 mm Imperial: 1/2"
Model Number	CP7773
Net weight	Metric: 5 1/2 kg Imperial: 12.05 lb
Power/weight ratio	Metric: 296.4 Nm/kg Imperial: 99.6 ft.lb/lb
Product Number	8941077730
Range Imperial	100 - 950 ft.lbs
Range Metric	136 - 1,288 Nm
Side to center	Metric: 45 mm Imperial: 1.8"
Square Drive	1"
Vibration uncertainty (K)	4.2 m/s2
Vibration	10.4 m/s2
