Chicago Pneumatic CP7776-6 1 Impact Wrenches 955-2073NM

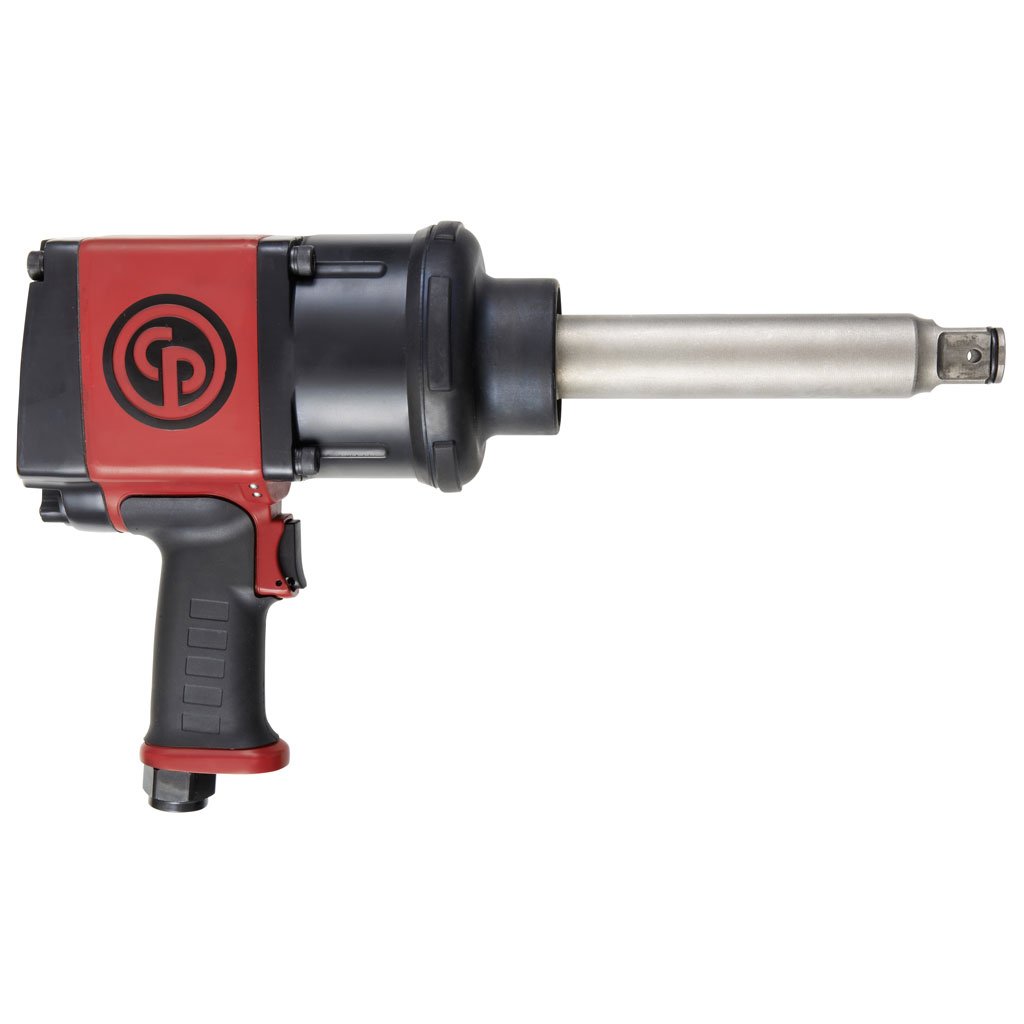

Name: Chicago Pneumatic CP7776-6 1 Impact Wrenches 955-2073NM
Brand: ChicagoPneumatic
SKU: CP7776-6
Price: 5645.64 AED
Availability: InStock

Part Number : CP7776-6

High Torque & Comfort. High Torque & Powerful. Durable. Comfort & Great Handling. Useful. Safe.Range: 955 - 2073 Nm - 704 – 1530 ft.lbs

Availability: low stock

Specifications
Features

Actual air consumption	Metric: 15.6 l/s Imperial: 33 cfm
Air inlet thread size	1/2"
Average air consumption	Metric: 3.9 l/s Imperial: 8.2 cfm
Bolt Size	Metric: M32 mm
Brand	Chicago Pneumatic
Free Speed	5000 rpm
Length	Metric: 447 mm Imperial: 17.6"
Maximum Torque (reverse)	Metric: 2400 Nm Imperial: 1770 ft.lbs
Min. Hose Size	Metric: 13 mm Imperial: 1/2"
Model Number	CP7776-6
Net weight	Metric: 12.6 kg Imperial: 27.8 lb
Over carton	Metric: 1/2 mm Imperial: 98"
Power/weight ratio	Metric: 190.5 Nm/kg Imperial: 63.7 ft.lb/lb
Product Number	8941077766
Range Imperial	- 704 - 1530 ft.lbs
Range Metric	955 - 2073 Nm
Sound Power	104 db(A)
Sound pressure	93 db(A)
Square Drive	1"
Vibration uncertainty (K)	2.8 m/s2
Vibration	8.7 m/s2

2400 Nm – 1770 ft.lbs maximum torque in reverse
Pin less closed reinforced rocking dog clutch mechanism
TPR handle & side handle - being able to rotate in 4 positions
Regulator integrated in forward/reverse knob with 3 positions power setting in both directions.
Rubber bumper protecting both applications & tool (included)
Socket retainer ring combined with hole retainer
Handle being able to rotate in 4 positions for ultimate operator comfort
Angled down exhaust blows air away from work place
