Chicago Pneumatic CP7780-6 1 Impact Wrenches 350-1650NM

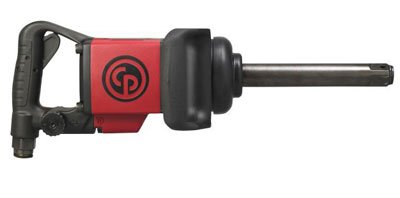

Name: Chicago Pneumatic CP7780-6 1 Impact Wrenches 350-1650NM
Brand: ChicagoPneumatic
SKU: CP7780-6
Price: 5506.05 AED
Availability: InStock

Part Number : CP7780-6

Lightweight & powerful. Maximize operator comfort with a lightweight impact. Ergonomic and intuitive handling. High Power to Weight ratio for General Maintenance applications.Range: 350 - 1650 Nm 260 - 1220 ft.lbs

Availability: low stock

Specifications
Features

Actual air consumption	Metric: 23.4 l/s Imperial: 49.8 cfm
Air inlet thread size	1/2"
Average air consumption	Metric: 5.6 l/s Imperial: 12 cfm
Brand	Chicago Pneumatic
Free Speed	5000 rpm
Length	Metric: 490 mm Imperial: 19.3"
Maximum Torque (reverse)	Metric: 2100 Nm Imperial: 1550 ft.lbs
Min. Hose Size	Metric: 13 mm Imperial: 1/2"
Model Number	CP7780-6
Net weight	Metric: 7.7 kg Imperial: 17 lb
Over carton	Metric: 527212291 mm Imperial: 20.78.311.5
Power/weight ratio	Metric: 272.7 Nm/kg Imperial: 91.2 ft.lb/lb
Product Number	8941077806
Range Imperial	260 - 1220 ft.lbs
Range Metric	350 - 1650 Nm
Sound Power	105 db(A)
Sound pressure	94 db(A)
Square Drive	1"
Vibration uncertainty (K)	3.4 m/s2
Vibration	13.9 m/s2

1" straight impact wrench with 6" extended anvil
17 lbs (7,7 kg) thanks to an aluminum housing giving less fatigue to the operator
1550 ft.lbs (2100Nm) maximum torque in reverse
Integrated protective cover on the clutch housing
Twin hammer mechanism in oil bath
Dedicated lever for forward & reverse
Ergonomic side handle with soft touch grip
4-positions power setting for both directions and on both sides of the tool
Socket retainer ring combined with hole retainer
