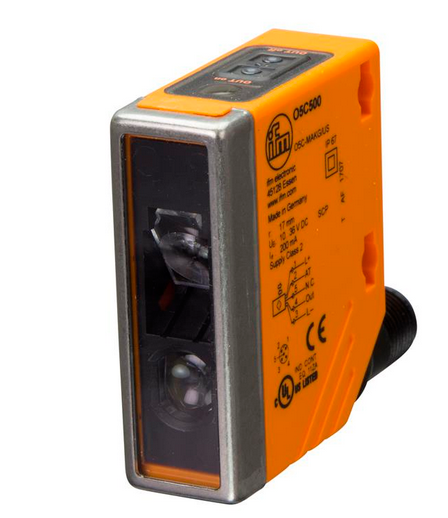

Colour sensor ifm electronic O5C500- O5C-MAKG/US100
The colour sensor O5C500 - O5C-MAKG/US100 from ifm electronic can reliably detect a taught-in colour, whereby the optimum colour of the transmitted light is automatically selected. Thanks to its high switching frequency of 2,000 Hz, the colour sensor O5C500 - O5C-MAKG/US100 can also be used for fast processes. The ingenious mounting accessories as well as the 270° rotatable M12 connector enable easy adaptation in the application
- Specifications
- Features
- Downloads
| Ambient temperature | -25 °C to 60 °C |
| Current consumption [mA] | 50; ((24 V)) |
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
| Housing | rectangular |
| Operating voltage [V] | 10-36 DC V |
| Output function | light-on/dark-on mode; (programmable) |
| Protection class | II |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 2000 Hz |
- Recognition, sorting and checking of objects based on their color
- Easy adjustment of the device function via teach
- Reliable detection of color shades
- High switching frequency for fast processes
- Extensive range of mounting components
