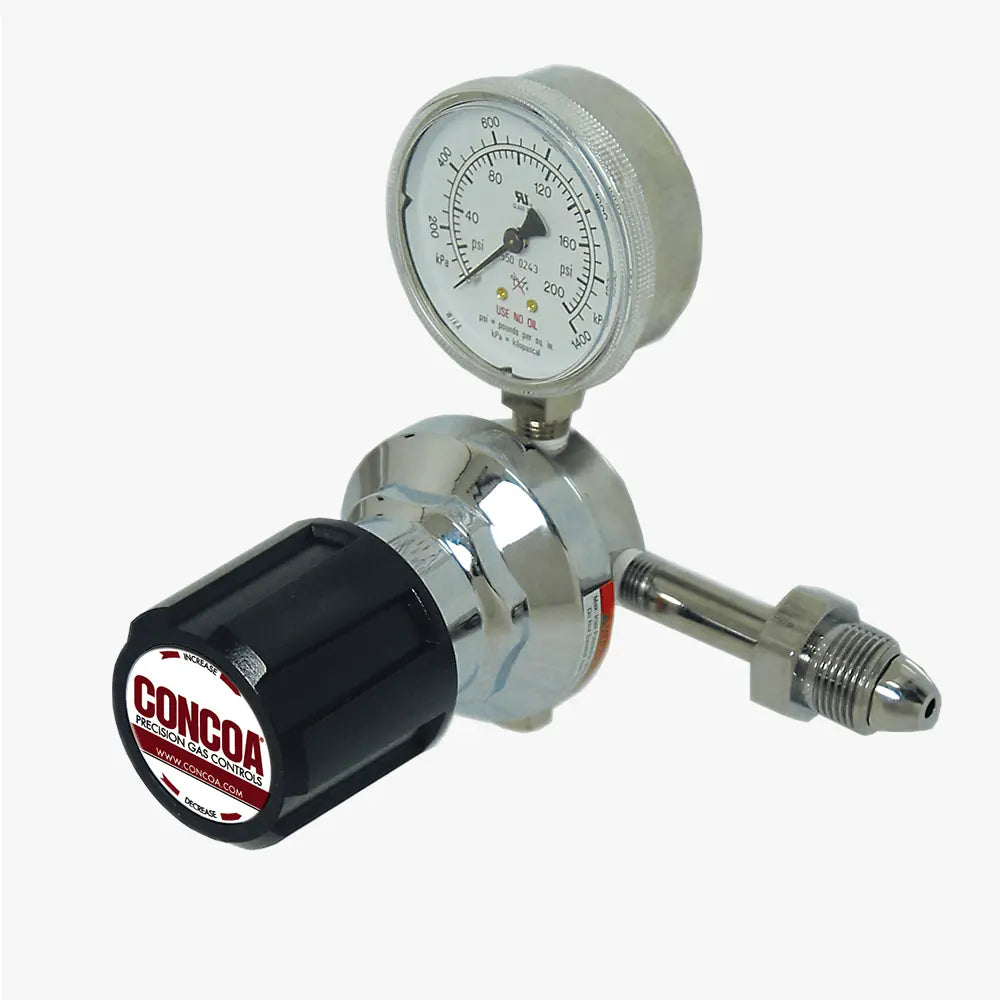

CONCOA 206 Series | Liquid Cylinder Regulator | 3000 PSIG Inlet, Cv 0.28
Part Number : CONCOA-206-SERIES-REGULATOR
The CONCOA 206 Series gives primary pressure control of gas drawn from cryogenic liquid cylinders. A large CAPSULE® seat supports flow rates that conventional regulators cannot reach, while the 3000 PSIG (210 BAR) rating allows safe use on high pressure cylinders as well. Each unit is configured to order, with outlet pressure range, gauge set, connections and options chosen when the order is placed.
- Standard relief valve protects the diaphragm and gauges
- Cleaned for oxygen service
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR)
- Body: Chrome-plated forged brass; bonnet: chrome-plated, die-cast zinc
- Diaphragm: 316L stainless steel; seat: PTFE
- Filter: 10-micron sintered bronze
- Helium leak integrity 1 x 10⁻⁸ scc/sec; Cv 0.28
For pricing, please contact our experts.
