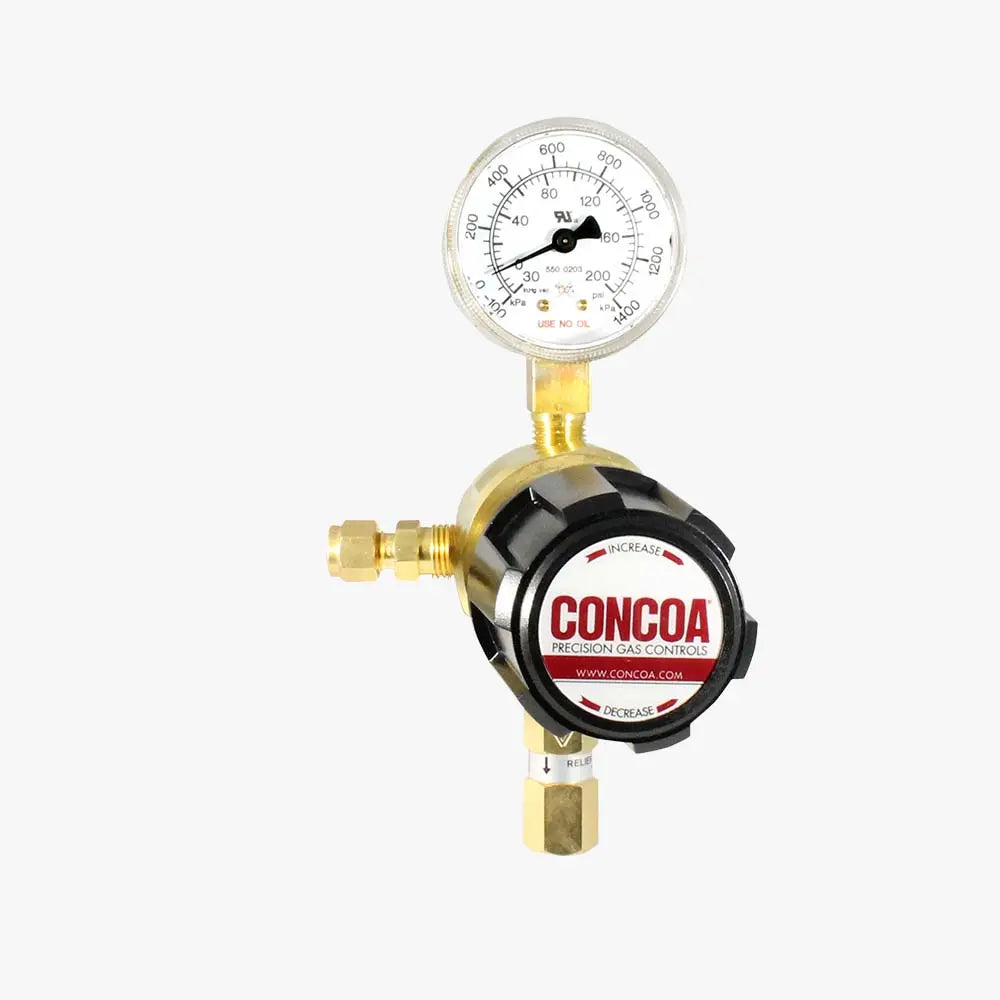

CONCOA 435 Series | Bare Brass Line Regulator | Brass Barstock, Full Cylinder Rating
Part Number : CONCOA-435-SERIES-REGULATOR
The CONCOA 435 Series is a line regulator for secondary control of ultra-high purity inert gases, including non-corrosive and liquefied gases. Its bare brass body avoids chromium or nickel contamination and is easy to tell apart from stainless steel in mixed-material installations. It is configured to order, so the delivery range, gauges, inlet and outlet connections and any options are selected at the time of ordering.
- Metal-to-metal diaphragm seal
- Pipe away relief valve for safe venting
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR)
- Body: Brass barstock; bonnet: brass barstock
- Diaphragm: 316L stainless steel; seat: PTFE
- Filter: 10-micron sintered bronze
- Helium leak integrity 1 x 10⁻⁹ scc/sec; Cv 0.1 max outlet 50 PSIG (3.5 BAR) or below; 0.2 max outlet above 50 PSIG (3.5 BAR)
For pricing, please contact our experts.
