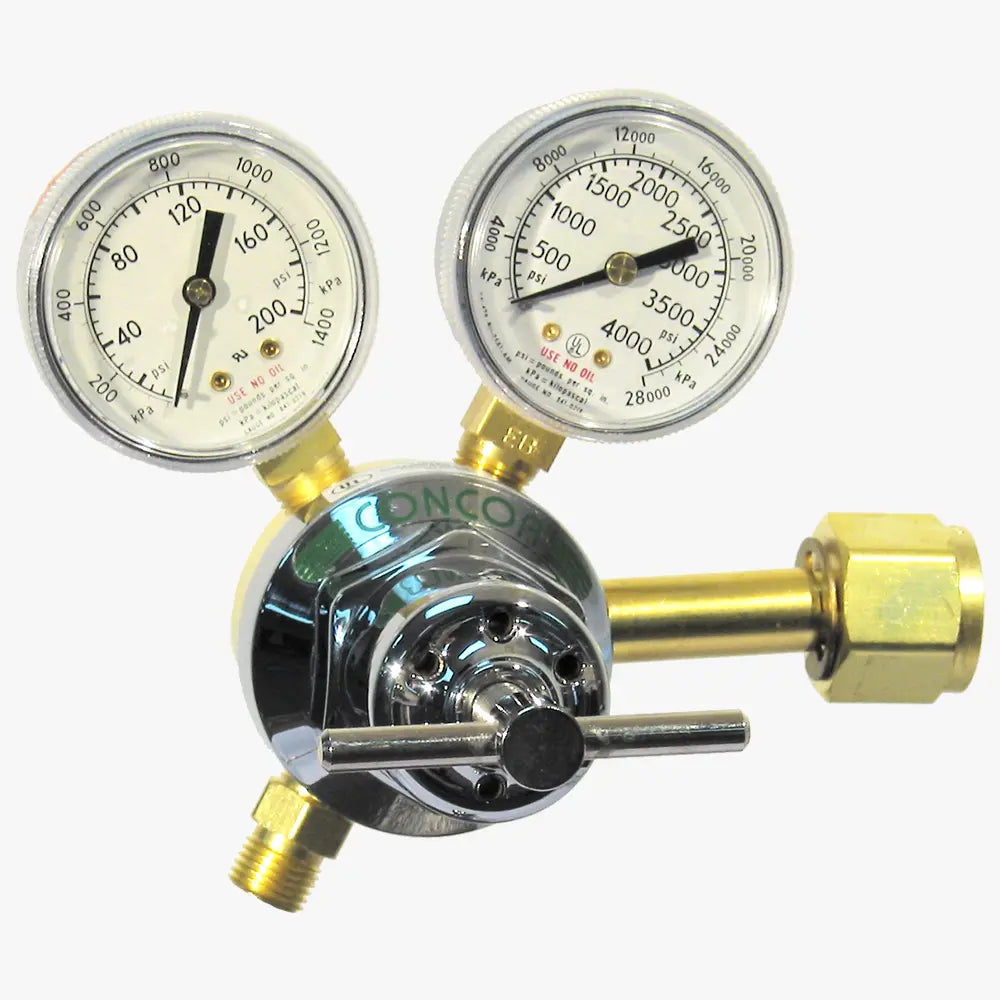

CONCOA 8065522-01-1 | 5500 Series Industrial Cylinder Regulator | Nitrogen, CGA 555, 120 PSIG Outlet
CONCOA 8065522-01-1 | 5500 Series Industrial Cylinder Regulator | Nitrogen, CGA 555, 120 PSIG Outlet
Part Number : 8065522-01-1
For nitrogen, the CONCOA 8065522-01-1 5500 Series regulator connects via CGA 555 and delivers up to 120 PSIG (8 BAR) through a 9/16 in -18 (B) LH Ext outlet, PTFE seat. Part 8065522-01-1 is rated for 3000 PSIG (210 BAR) inlet with 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa gauges. Use 8065522-01-1 for primary pressure control of nitrogen cylinders in welding, heating and cutting.
Key features
- Cv 0.15 and 25-micron sintered bronze filter on 8065522-01-1
- 8065522-01-1: forged brass body with chrome-plated zinc bonnet
- Self-seating internal relief valve in the diaphragm makes 8065522-01-1 tamper proof
- Steady control on 8065522-01-1 from a chloroprene diaphragm
For pricing, please contact our experts.
