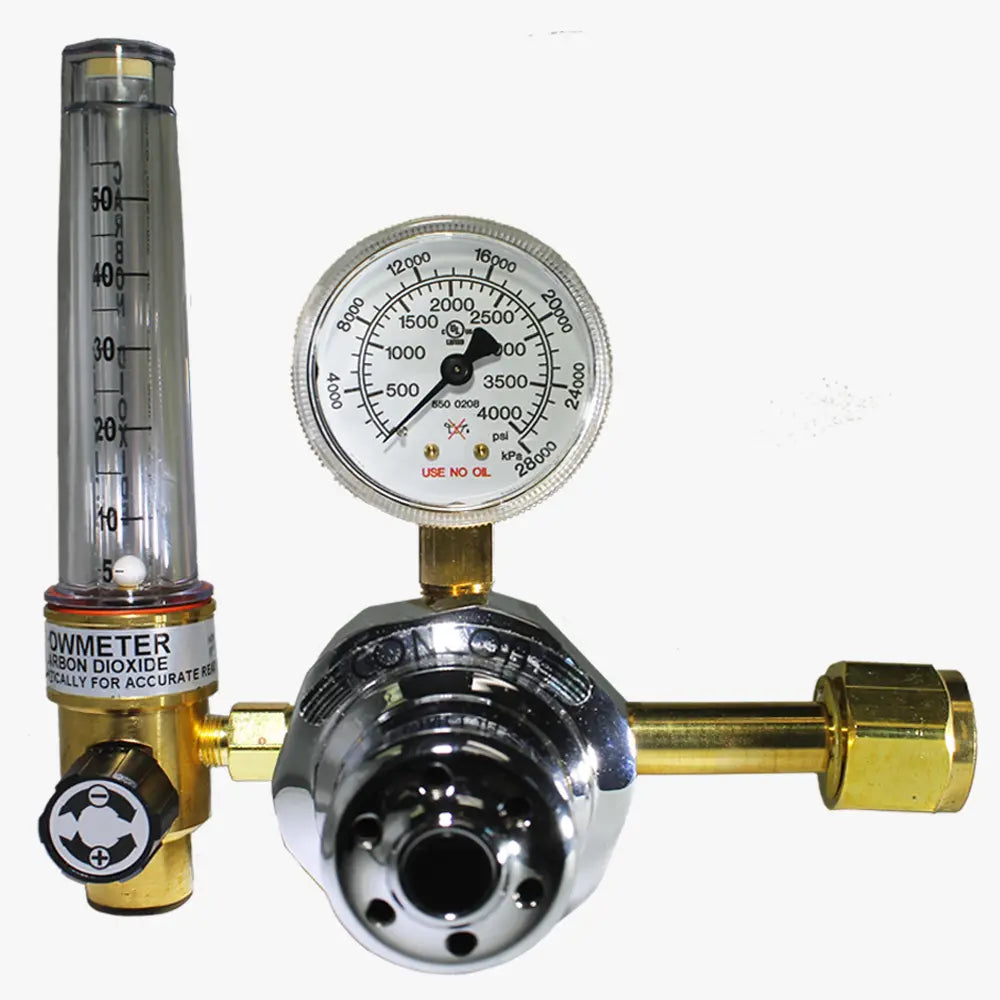

CONCOA 8065568-01-1 | 5500 Series Flowmeter Regulator | Argon, Helium, CGA 680, 30 PSIG Preset
Part Number : 8065568-01-1
The CONCOA 8065568-01-1 flowmeter regulator for argon, helium uses a CGA 680 connection, PCTFE seat and 30 PSIG preset delivery pressure design, with inlet pressure up to 5500 PSIG (380 BAR). It reads flow on a 10-60 SCFH Argon/30-200 SCFH Helium Flowmeter and 0-6000 PSIG/0-42,000 kPa Inlet Gauge. Part 8065568-01-1 provides cylinder flow control with flow read directly on the meter.
Key features
- Medium-large seat displacement gives 8065568-01-1 good flow capacity
- Outlet of 8065568-01-1: 5/8 in -18 (B) RH Int; filter: 25-micron sintered bronze
- Forged brass body and chrome-plated, die-cast zinc bonnet on 8065568-01-1
- 8065568-01-1 uses a chloroprene diaphragm for steady control
For pricing, please contact our experts.
