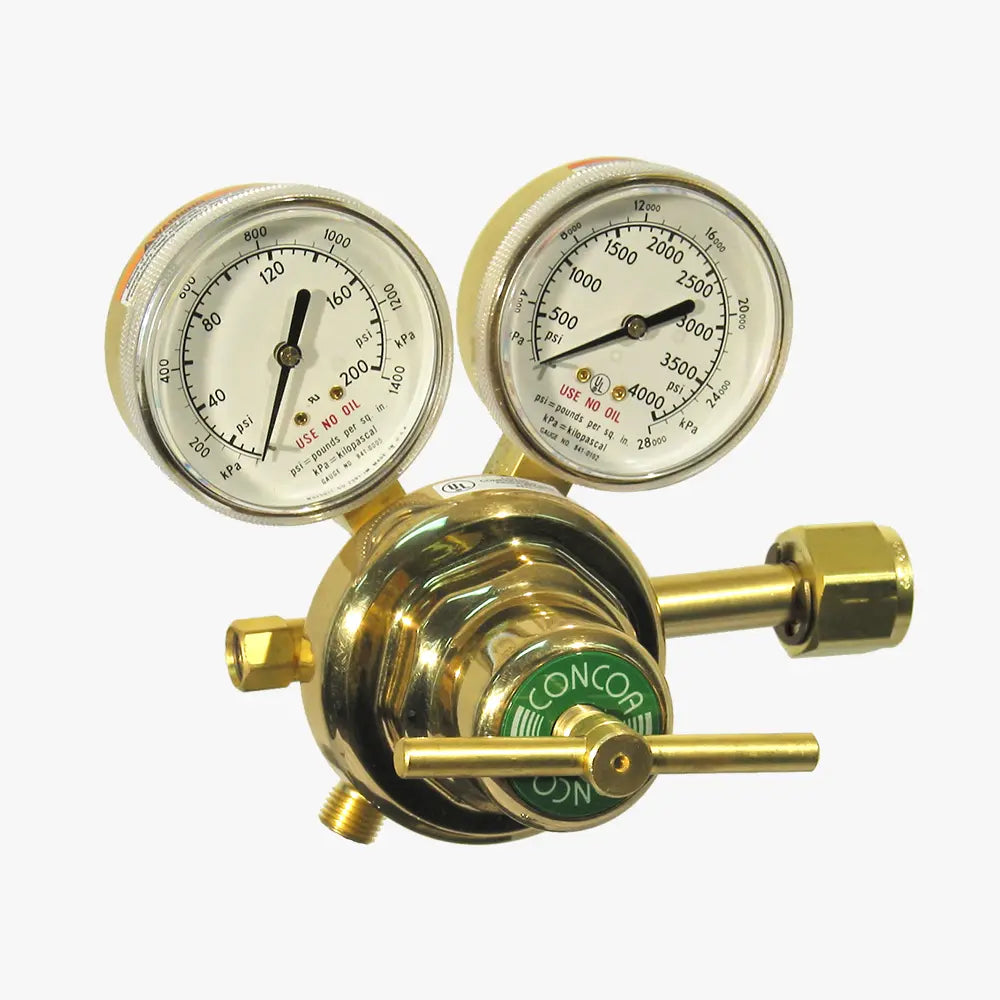

CONCOA 8066603-01-1 | 6600 Series Cylinder Regulator | Industrial Air, CGA 590, 120 PSIG Delivery
Part Number : 8066603-01-1
The CONCOA 8066603-01-1 cylinder regulator is built for industrial air cylinders, with a CGA 590 inlet and 1/4 in MNPT outlet. With a PTFE seat, this model accepts up to 3000 PSIG (210 BAR) at the inlet and supplies up to 120 PSIG (8 BAR) downstream. Gauges fitted to 8066603-01-1 read 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A heavy-duty machined brass bonnet and 2 1/2 in (63 mm) brass gauges
- A chloroprene diaphragm for steady pressure control, plus a forged brass body and bonnet
- Medium-large seat displacement for high flow capacity with a CAPSULE® seat design for easy maintenance
- A 25-micron sintered bronze filter with an operating range of -40°F to 140°F (-40°C to 60°C)
For pricing, please contact our experts.
