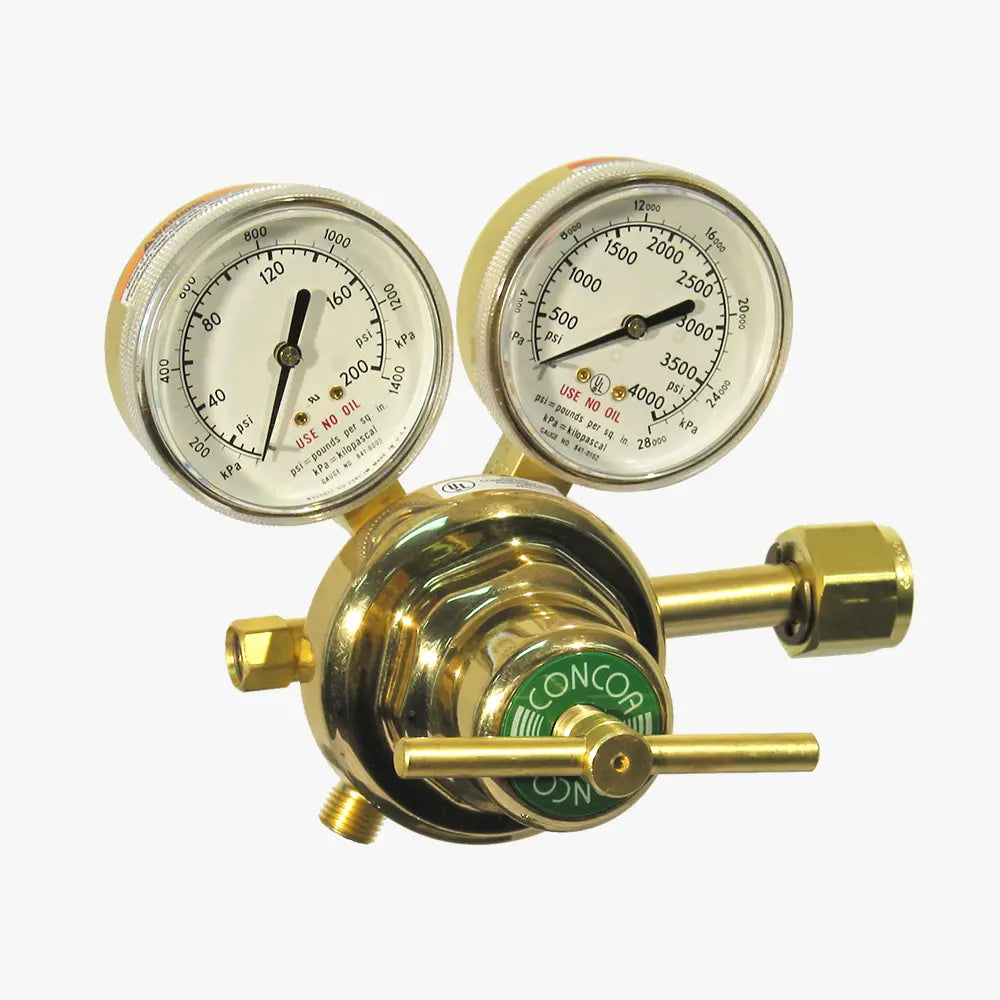

CONCOA 8066608-01-1 | 6600 Series Cylinder Regulator | Breathing Air, CGA 346, 120 PSIG Delivery
Part Number : 8066608-01-1
CONCOA 8066608-01-1 is the breathing air cylinder regulator of the 6600 Series Cylinder Regulator line, fitted with a CGA 346 cylinder inlet and a 1/4 in MNPT outlet. Maximum delivery pressure is 120 PSIG (8 BAR), inlet pressure is rated to 3000 PSIG (210 BAR) and the seat is PTFE. Gauge scales: 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A chloroprene diaphragm for steady pressure control with cleanliness that meets or exceeds CGA G-4.1
- Medium-large seat displacement for high flow capacity, plus a forged brass body and bonnet
- A CAPSULE® seat design for easy maintenance with a heavy-duty machined brass bonnet
- Brass gauges of 2 1/2 in (63 mm) diameter, plus a 25-micron sintered bronze filter
For pricing, please contact our experts.
