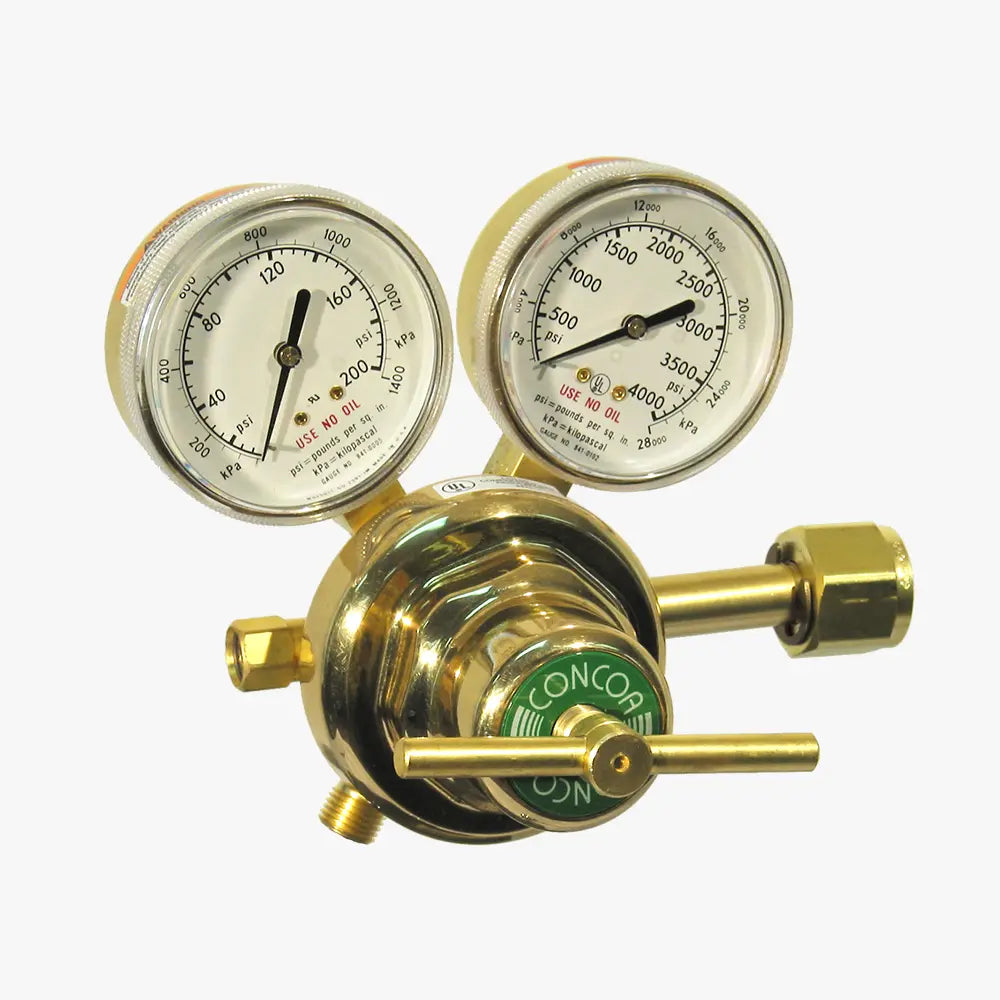

CONCOA 8066611-01-1 | 6600 Series Cylinder Regulator | Argon/Nitrogen/Helium, CGA 580, 250 PSIG Delivery
Part Number : 8066611-01-1
The CONCOA 8066611-01-1 cylinder regulator is built for argon, nitrogen and helium (inert gas) cylinders, with a CGA 580 inlet and 1/4 in MNPT outlet. With a PTFE seat, this model accepts up to 3000 PSIG (210 BAR) at the inlet and supplies up to 250 PSIG (17 BAR) downstream. The two gauges read 0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A CAPSULE® seat design for easy maintenance with a chloroprene diaphragm for steady pressure control
- 2 1/2 in (63 mm) brass gauges and a forged brass body and bonnet
- A 25-micron sintered bronze filter, plus a heavy-duty machined brass bonnet
For pricing, please contact our experts.
