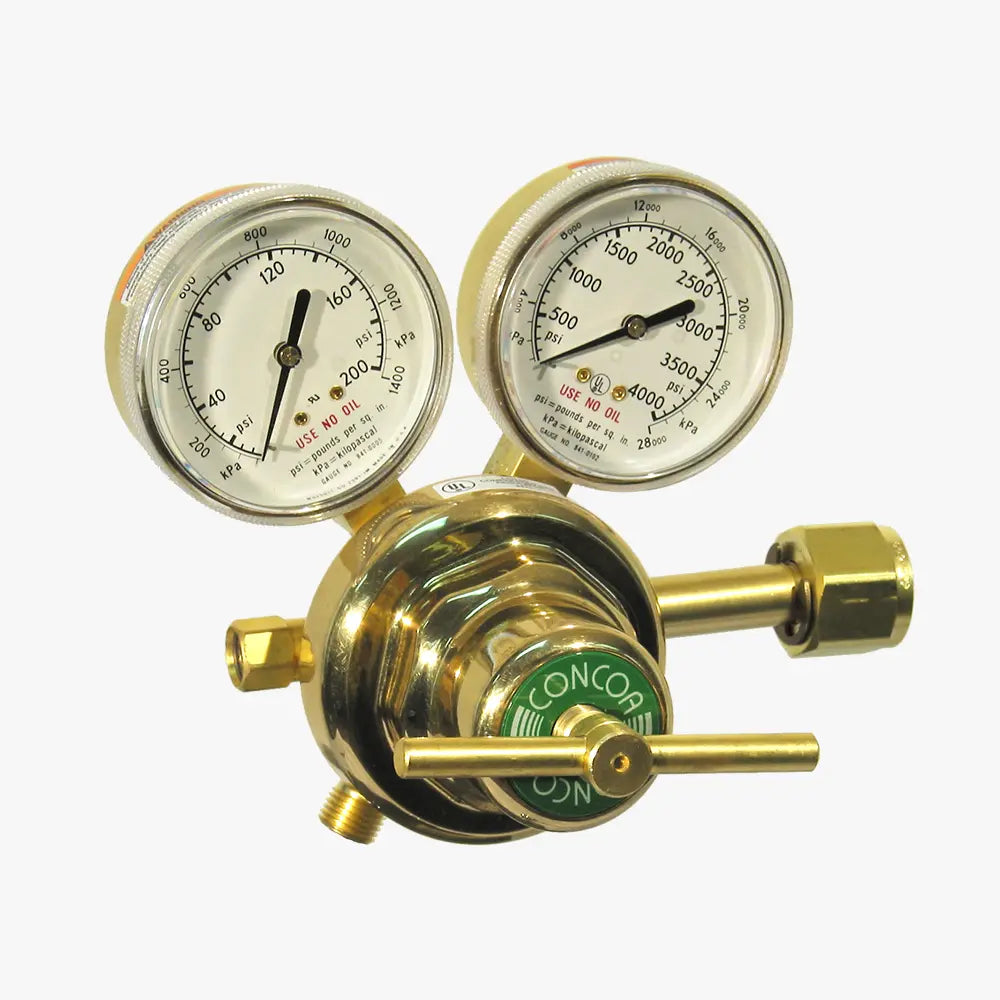

CONCOA 8066618-01-1 | 6600 Series Cylinder Regulator | Breathing Air, CGA 346, 250 PSIG Delivery
Part Number : 8066618-01-1
CONCOA 8066618-01-1 is the breathing air cylinder regulator of the 6600 Series Cylinder Regulator line, fitted with a CGA 346 cylinder inlet and a 1/4 in MNPT outlet. It delivers up to 250 PSIG (17 BAR) from a maximum inlet of 3000 PSIG (210 BAR), using a PTFE seat. It carries gauges scaled 0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa, for welding, heating and cutting use.
Key features
- 2 1/2 in (63 mm) brass gauges and an operating range of -40°F to 140°F (-40°C to 60°C)
- A 25-micron sintered bronze filter and a forged brass body and bonnet
- A Cv of 0.2 and a heavy-duty machined brass bonnet
For pricing, please contact our experts.
