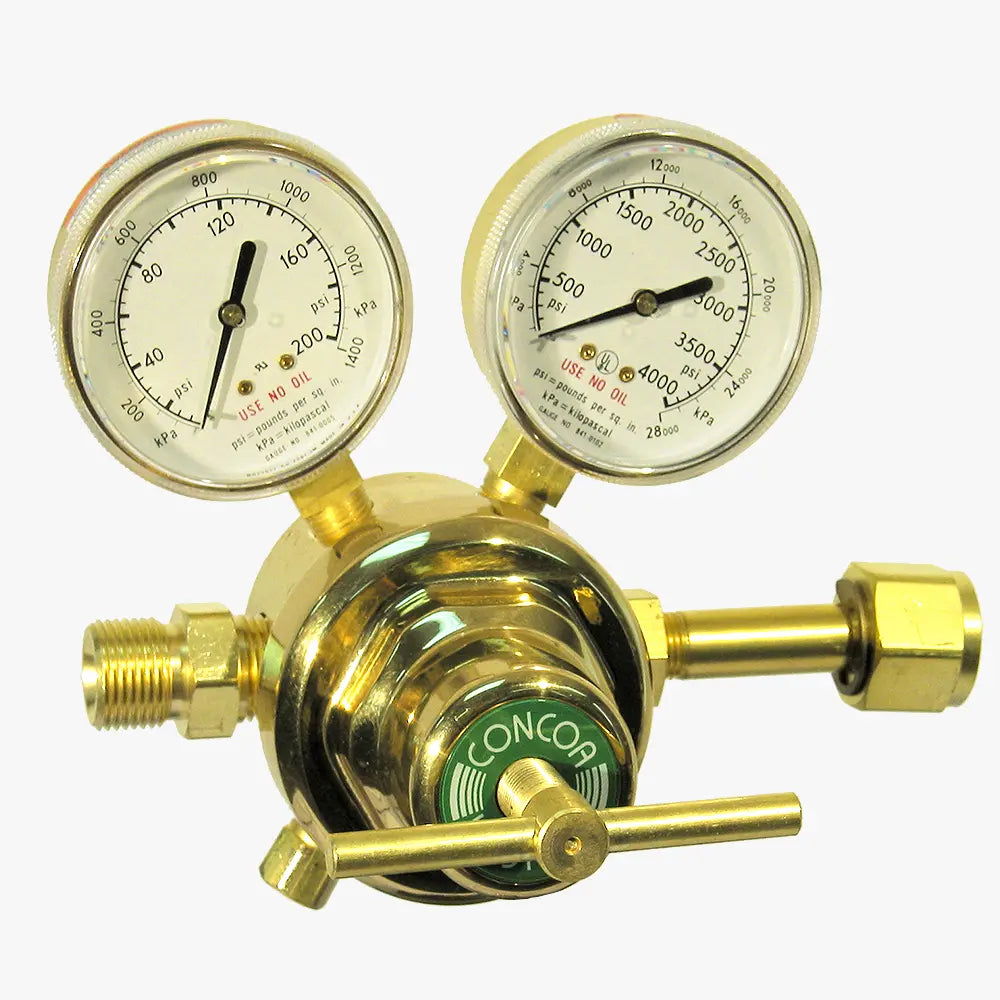

CONCOA 8066707-01-1 | 6700 Series Cylinder Regulator | Hydrogen/Methane, CGA 350, 120 PSIG Delivery
Part Number : 8066707-01-1
CONCOA 8066707-01-1 is the hydrogen and methane heavy-duty cylinder regulator of the 6700 Series Cylinder Regulator line, fitted with a CGA 350 cylinder inlet and a 7/8 in -14 (C) LH Ext outlet. It supplies up to 120 PSIG (8 BAR) downstream and uses an FKM seat. The two gauges read 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A 3000 PSIG (210 BAR) maximum inlet rating without peripherals with an operating range of -40°F to 140°F (-40°C to 60°C)
- A brass barstock body, plus a balanced stem seat that limits static increment
- A heavy forged brass bonnet with 1/2 in seat and inlet ports for very high flow
For pricing, please contact our experts.
