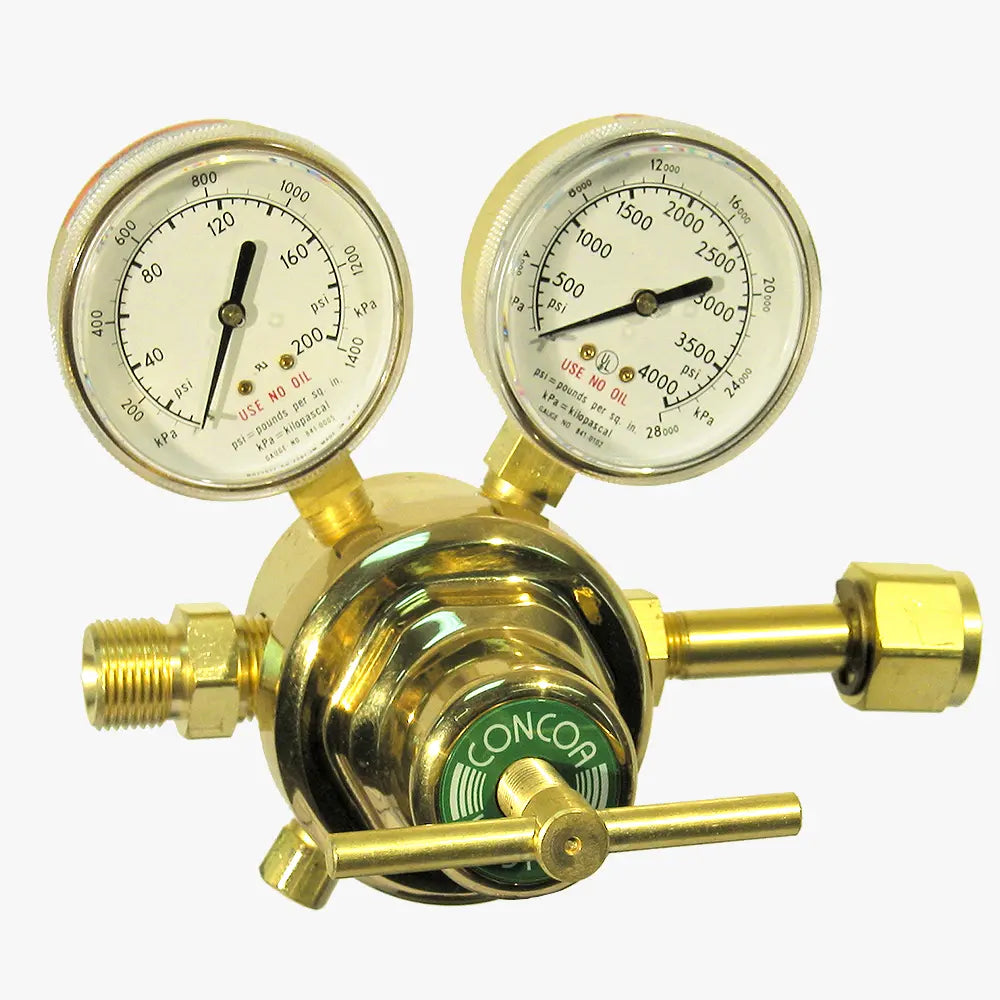

CONCOA 8066708-01-1 | 6700 Series Cylinder Regulator | Compressed Air, CGA 346, 120 PSIG Delivery
Part Number : 8066708-01-1
Part 8066708-01-1 sets up the 6700 Series Cylinder Regulator for compressed air service, pairing a CGA 346 inlet with a 7/8 in -14 (C) RH Ext outlet connection. Maximum delivery pressure is 120 PSIG (8 BAR) and the seat material is FKM. Supplied gauges cover 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A brass barstock body and a chloroprene diaphragm
- A heavy forged brass bonnet with a balanced stem seat that limits static increment
- A 40-micron 316L stainless steel filter and 1/2 in seat and inlet ports for very high flow
- 2 1/2 in (63 mm) brass gauges and a 3000 PSIG (210 BAR) maximum inlet rating without peripherals
For pricing, please contact our experts.
