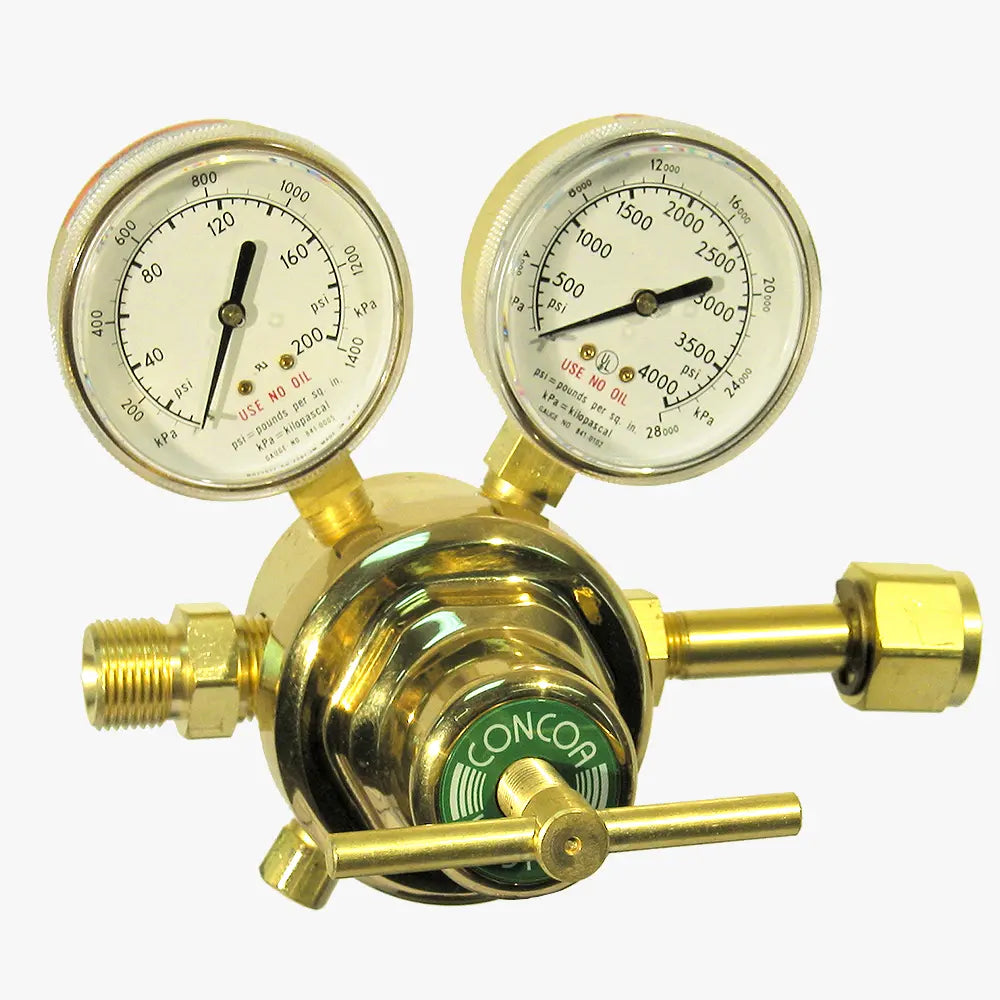

CONCOA 8066716-01-1 | 6700 Series Cylinder Regulator | Oxygen, CGA 540, 200 PSIG Delivery
Part Number : 8066716-01-1
CONCOA 8066716-01-1 is the oxygen heavy-duty cylinder regulator of the 6700 Series Cylinder Regulator line, fitted with a CGA 540 cylinder inlet and a 7/8 in -14 (C) RH Ext outlet. It supplies up to 200 PSIG (14 BAR) downstream and uses an FKM seat. It carries gauges scaled 0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa, for heating and cutting use.
Key features
- A 40-micron 316L stainless steel filter and 2 1/2 in (63 mm) brass gauges
- A chloroprene diaphragm and a balanced stem seat that limits static increment
- A Cv of 2.0 and 1/2 in seat and inlet ports for very high flow
For pricing, please contact our experts.
