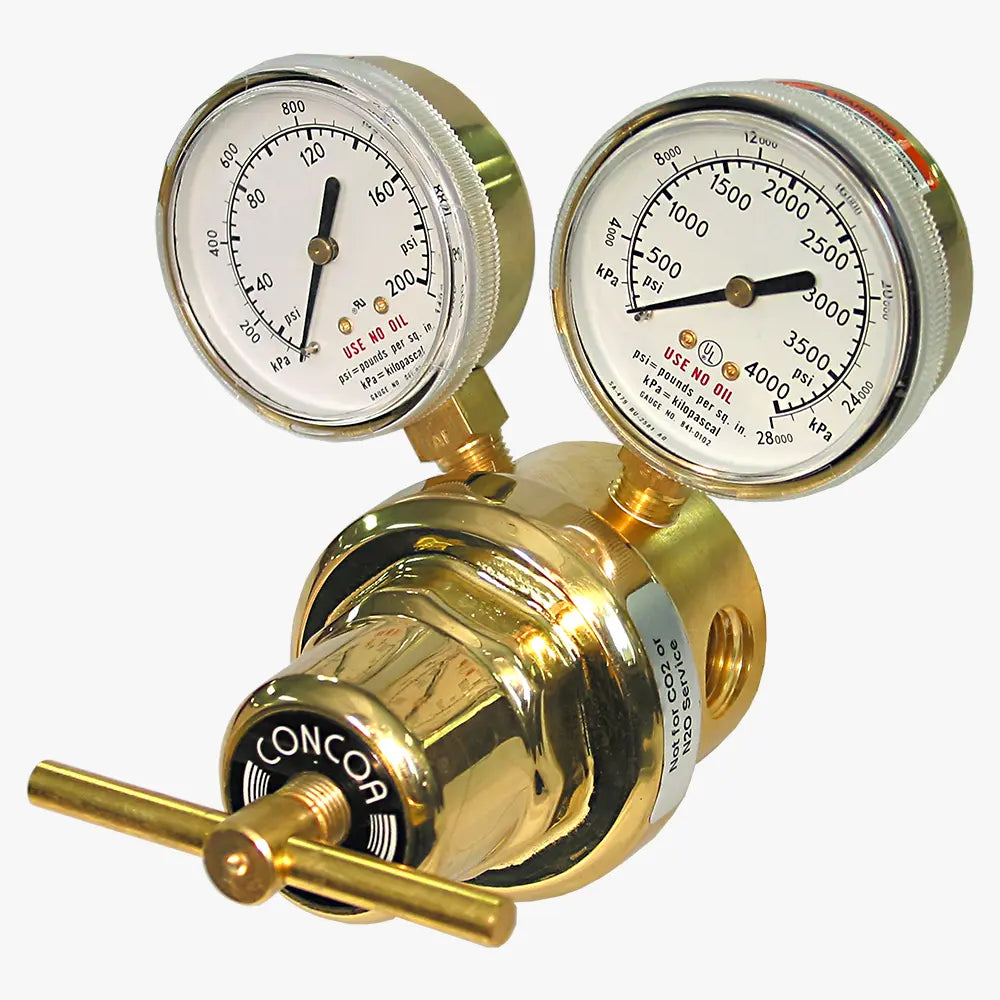

CONCOA 8066774-01-1 | 6700 Series Manifold Regulator | Inert Gas, 200 PSIG Delivery, LH Inlet
Part Number : 8066774-01-1
The CONCOA 8066774-01-1 serves inert gas manifolds, with the inlet positioned LH. An FKM seat controls delivery pressure up to 200 PSIG (14 BAR), shown on 0-400 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa gauges.
Key features
- A 40-micron 316L stainless steel filter and a brass barstock body
- A chloroprene diaphragm and a balanced stem seat that steadies output as inlet pressure decays
- 2 1/2 in (63 mm) brass gauges, plus 1/2 in FNPT inlet and outlet ports
- A Cv of 2.0 with 1/4 in FNPT gauge and relief ports
For pricing, please contact our experts.
