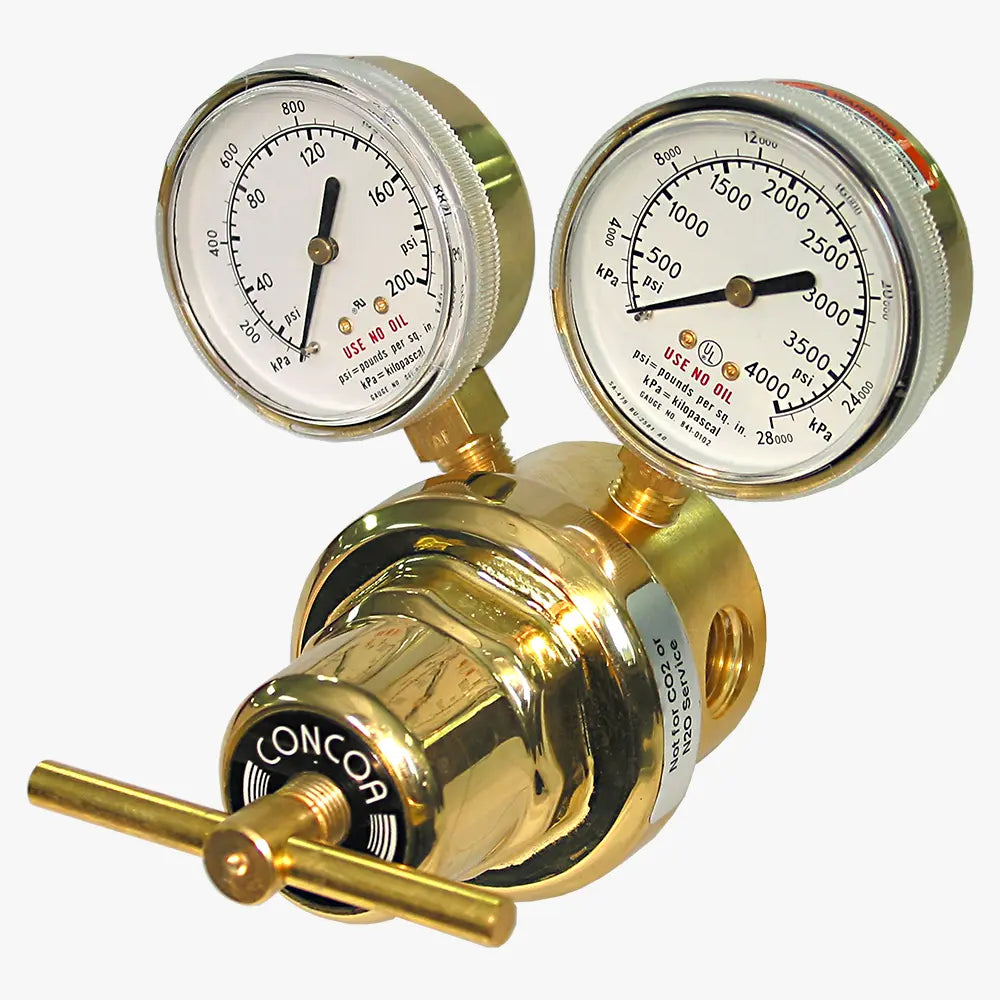

CONCOA 8066775-01-1 | 6700 Series Manifold Regulator | CO2/Inert Gas, 120 PSIG Delivery, LH Inlet
Part Number : 8066775-01-1
Designed for carbon dioxide and inert gas manifold supply, CONCOA 8066775-01-1 has a LH inlet position. Gauges scaled 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa monitor this EPDM-seat model, which delivers up to 120 PSIG (8 BAR).
Key features
- A chloroprene diaphragm with a balanced stem seat that steadies output as inlet pressure decays
- 2 1/2 in (63 mm) brass gauges and 1/2 in FNPT inlet and outlet ports
- A Cv of 2.0, plus 1/4 in FNPT gauge and relief ports
- A -40°C to 60°C (-40°F to 140°F) temperature rating, plus a 3000 PSIG (210 BAR) maximum inlet rating without peripherals
For pricing, please contact our experts.
