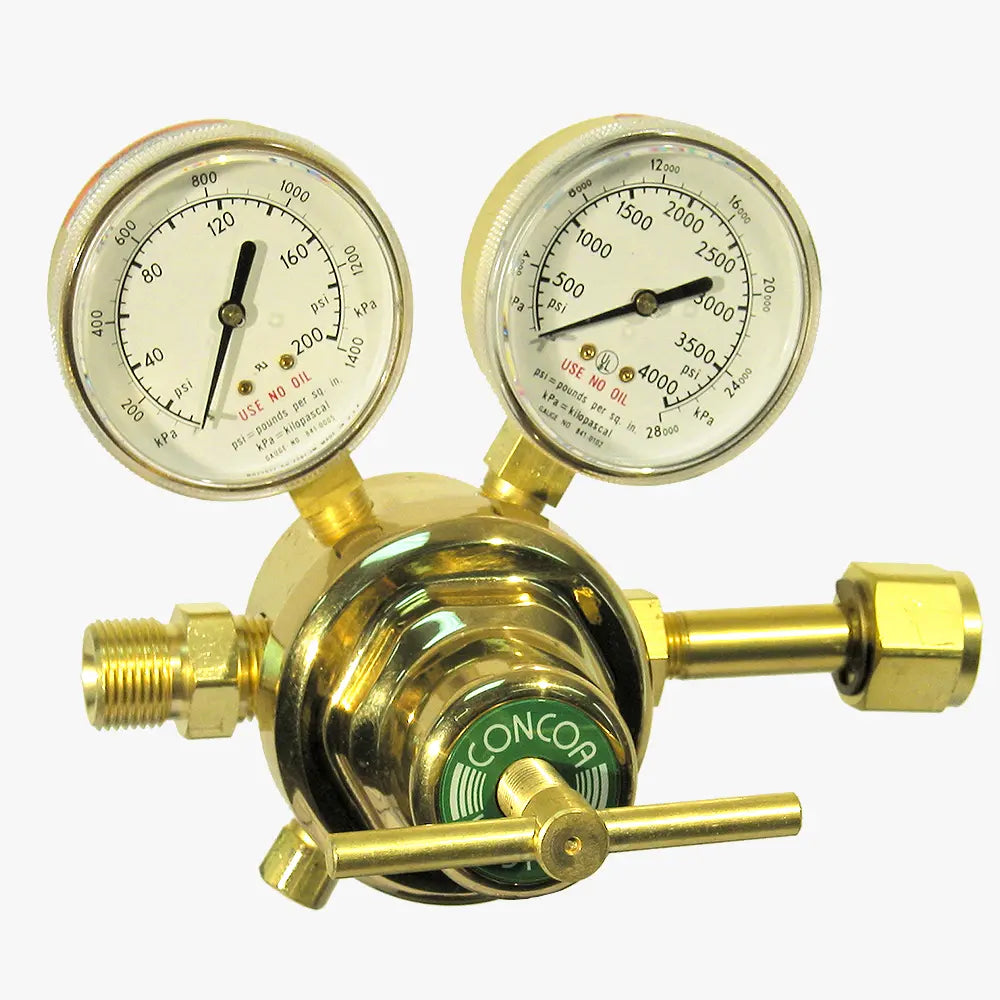

CONCOA 8066787-01-1 | 6700 Series Cylinder Regulator | Carbon Dioxide, CGA 320, 120 PSIG Delivery
Part Number : 8066787-01-1
Part 8066787-01-1 sets up the 6700 Series Cylinder Regulator for carbon dioxide service, pairing a CGA 320 inlet with a 7/8 in -14 (C) RH Int outlet connection. Maximum delivery pressure is 120 PSIG (8 BAR) and the seat material is EPDM. The carbon dioxide regulator 8066787-01-1 carries gauges scaled 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- An operating range of -40°F to 140°F (-40°C to 60°C) and 1/2 in seat and inlet ports for very high flow
- CRN OF11809.2 registration and a balanced stem seat that limits static increment
- A 3000 PSIG (210 BAR) maximum inlet rating without peripherals with a brass barstock body
For pricing, please contact our experts.
